| الاسم التجاري: | Casun |
| رقم الموديل: | 57SHD4101-29PH-IRS57E |
| موك: | 5 قطعة |
| سعر: | $35~$37 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 10000 + جهاز كمبيوتر شخصى + شهر |

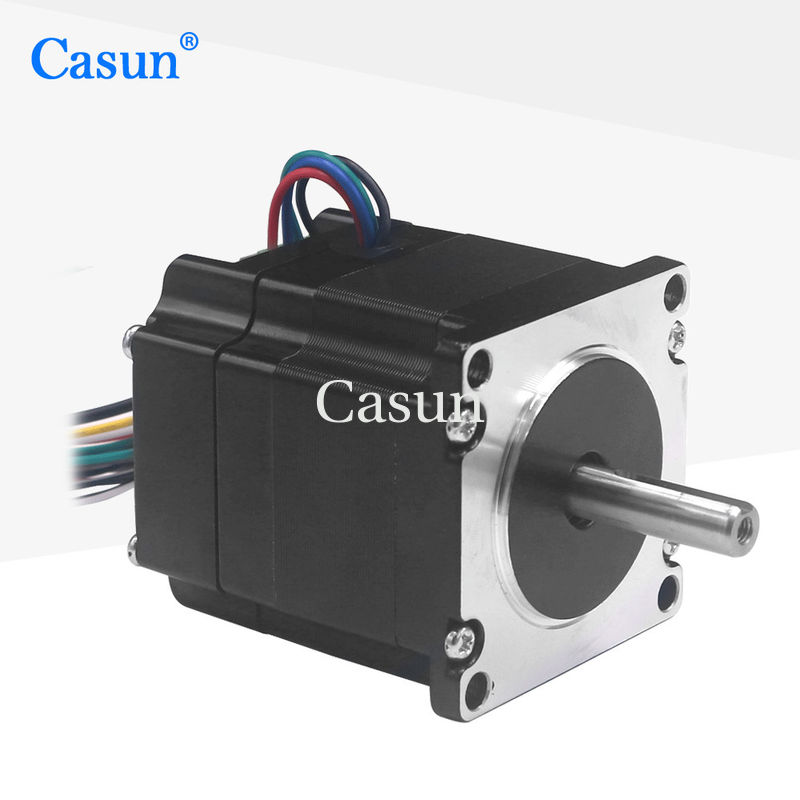

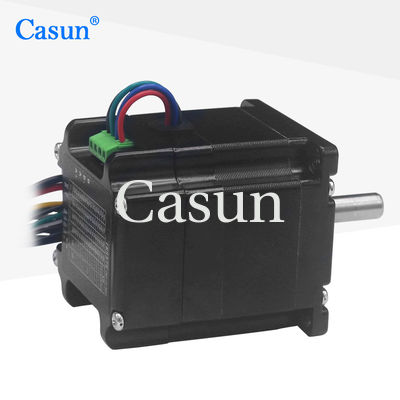

Casun Motor Nema 23 Stepper Motor IRS57E Closed Loop Stepper Motor 900mN.m 12V CE RoHS
The Casun Nema 23 Closed Loop Stepper Motor (Model: IRS57E) delivers industrial-grade precision and reliability for demanding automation applications. Combining 900mN.m high torque with 12V low-voltage operation, this motor integrates encoder-based closed-loop control to eliminate step loss and ensure consistent performance in CNC, robotics, and high-speed positioning systems.
Features:
|
Step Angel
|
1.8° |
|
Frame Size
|
45 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
1.0 Amp |
|
Holding Torque
|
900 mN.m |
|
Resistance
|
12 ohm |
|
Inductance
|
28 mH |
|
Rotor Inertia
|
155 g.cm² |
|
Motor weight
|
0.6 kg |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130 deg C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Encoder
Voltage: 5 v
Output: A + A - B + B - Z + Z -
