| الاسم التجاري: | Casun |
| رقم الموديل: | 20SHD0250-52NTV2 |
| موك: | 5 قطعة |
| سعر: | $17.59~$18.91 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 10000 + جهاز كمبيوتر شخصى + شهر |

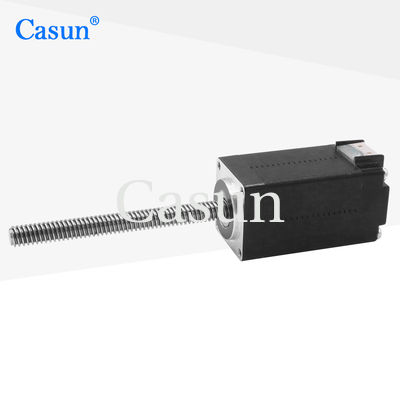

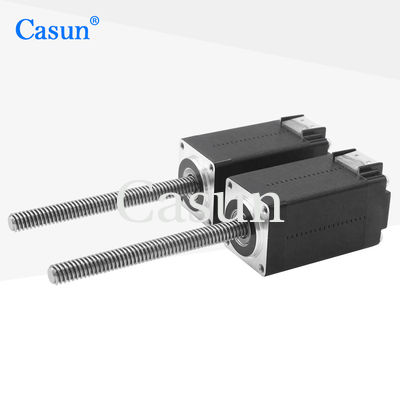

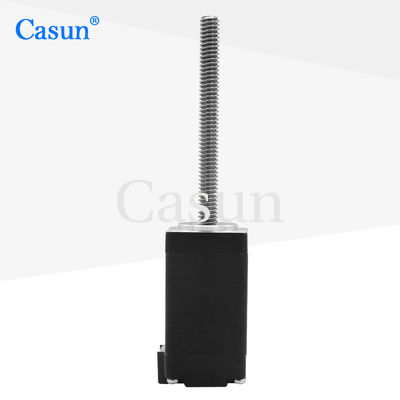

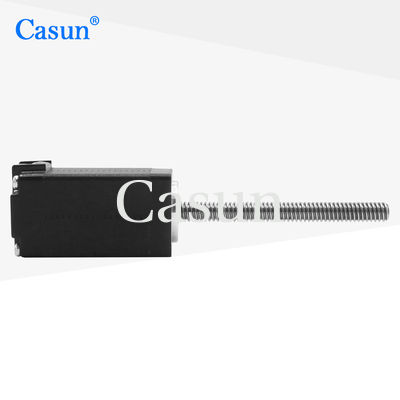

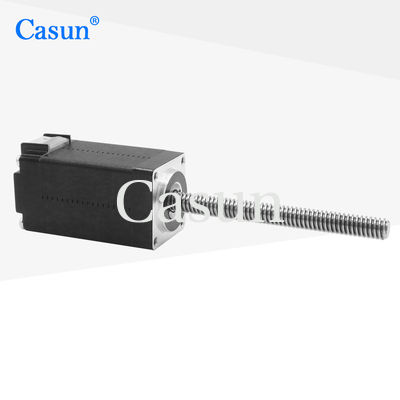

Casun Nema 8 Lead Screw Stepper Motor Tr5X2(P1) 5.4V 38mm Body High Precision 32mN.m for Beauty Equipment
The Casun Nema 8 Lead Screw Stepper Motor features an integrated TR5×2 (P1) threaded shaft, delivering precise linear motion in a remarkably compact 38mm body. Designed specifically for beauty and aesthetic equipment, this high-precision motor combines 32mN.m torque with smooth, reliable performance for delicate applications.
Features:
|
Step Angel
|
1.8° |
|
Frame Size
|
38 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
0.6 Amp |
|
Holding Torque
|
32 mN.m |
|
Resistance
|
9 ohm |
|
Inductance
|
3.2 mH |
|
Rotor Inertia
|
3.5 g.cm² |
|
Motor weight
|
0.08 kg |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130 deg C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Encoder
Voltage: 5 v
Output: A + A - B + B - Z + Z -
