| الاسم التجاري: | Casun |
| رقم الموديل: | F57SHD4816-21B |
| موك: | 5 قطعة |
| سعر: | $8.1~$9.38 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 10000 + جهاز كمبيوتر شخصى + شهر |

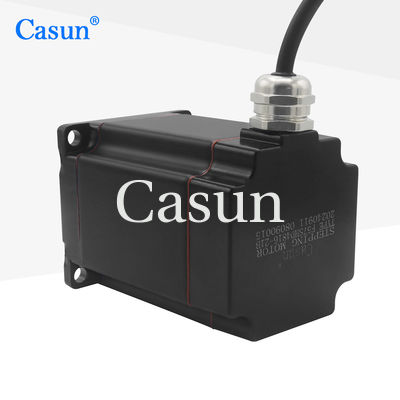

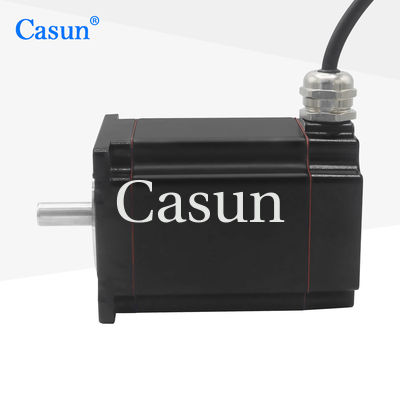

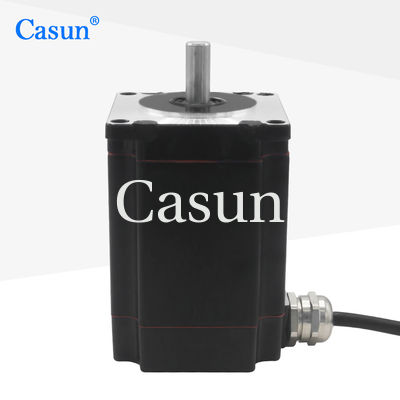

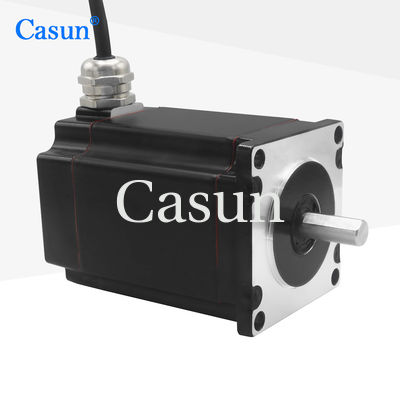

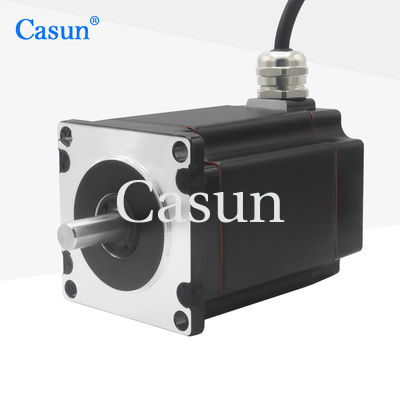

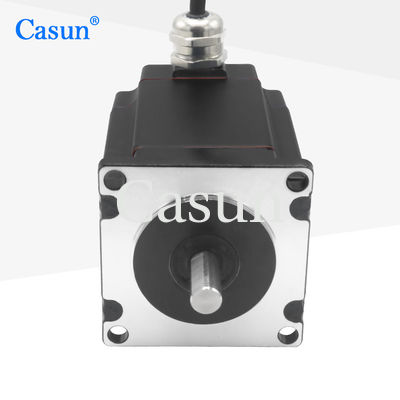

Factory Prices Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor with CE RoHS for CNC
Designed for demanding industrial applications, the Casun Nema 23 Hybrid Stepper Motor delivers exceptional 2N.m torque in a compact 76mm body, making it ideal for CNC machines, automated equipment, and high-precision motion systems. With CE & RoHS certification, this motor ensures both performance and compliance for global markets.
Features:
|
Step Angel
|
1.8° |
|
Frame Size
|
76 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
3 Amp |
|
Holding Torque
|
2000 mN.m |
|
Resistance
|
0.95 ohm |
|
Inductance
|
3.6 mH |
|
Rotor Inertia
|
460 g.cm² |
|
Motor weight
|
1 kg |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130 deg C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Encoder
Voltage: 5 v
Output: A + A - B + B - Z + Z -
