| الاسم التجاري: | Casun |
| رقم الموديل: | 86SHD8503-37BH-HP86 |
| موك: | 1 قطعة |
| سعر: | $24.92-$25.96 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

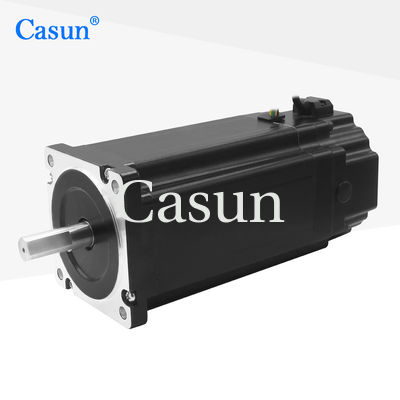

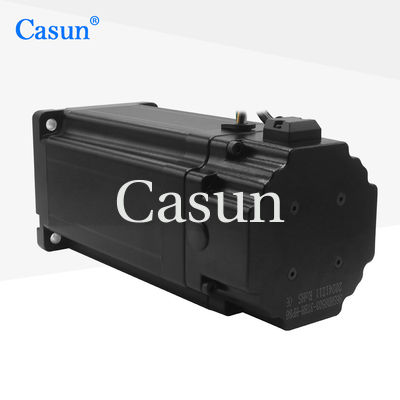

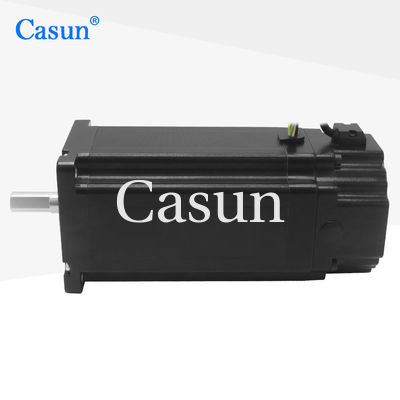

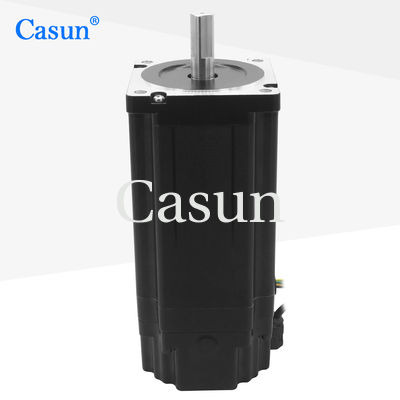

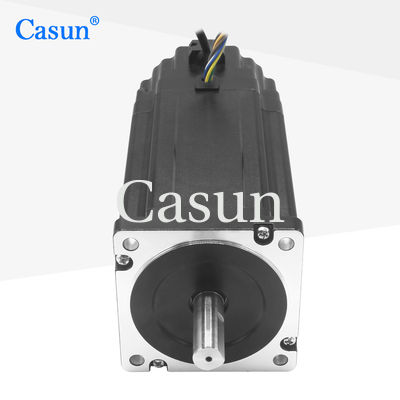

Suitable for various mechanical and automation equipment, such as CNC machine tools, packaging machinery, textile machinery, etc.
The braking function of the stepper motor can quickly stop the motor when needed.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
86 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
5.7 A max |
|
Holding Torque
|
10.6N.m max |
|
Resistance
|
0.42ohm |
|
Inductance
|
4.7mH |
|
Rotor Inertia
|
3600 g-cm² |
|
Motor weight
|
5.0 kg |
|
Number of leads
|
8 |
|
Connection
|
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 86SHD4003-32 | 4.0N.m | 1.8° | 69mm | Key Shaft-32mm | 4.0A |
| 86SHD4101-32 | 4.5N.m | 1.8° | 76mm | Key Shaft-32mm | 4.0A |
| 86SHD4201-37 | 5.6N.m | 1.8° | 98mm | Key Shaft-37mm | 4.0A |
| 86SHD4314-37 | 6.8N.m | 1.8° | 112mm | Key Shaft-37mm | 5.0A |
| 86SHD4404-37 | 8.0N.m | 1.8° | 127mm | Key Shaft-37mm | 5.0A |
| 86SHD4505-37 | 12.0N.m | 1.8° | 150mm | Key Shaft-37mm | 5.5A |
