| الاسم التجاري: | Casun |

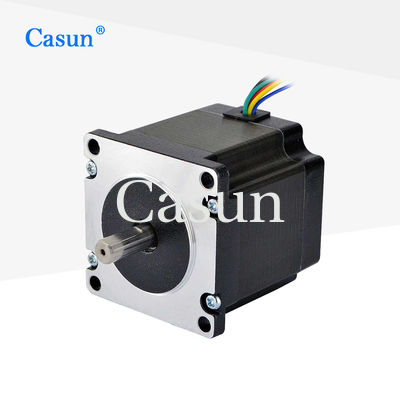

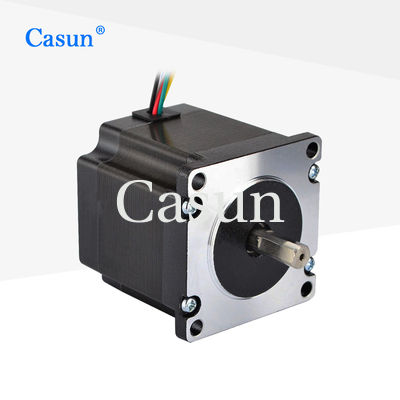

| رقم الموديل: | 57SHD6448-20BSH |
| موك: | 1 قطعة |
| سعر: | $3.14-$5 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |
Dual axis stepper motors typically have higher torque because the two axes can jointly provide greater torque.
The dual axis stepper motor can adapt to various application scenarios, such as automation equipment, precision instruments, robots, etc.
Features:
Step Angel |
1.8 ° |
Fram Size |
57 mm |
Number of Phase |
4 Phase |
Rated Current |
1.0 A |
Holding Torque |
900 mN.m |
Resistance |
7.4 ohm |
Inductance |
10 mH |
Rotor Inertia |
260 g-cm² |
Motor weight |
0.6 kg |
Number of leads |
4 |
Connection |
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 57SHD4013-21B | 0.6N.m | 1.8° | 41mm | D Shaft-21mm | 1.0A |
| 57SHD4415-21B | 1.1N.m | 1.8° | 54mm | D Shaft-21mm | 3.0A |
| 57SHD4816-21B | 2.0N.m | 1.8° | 76mm | D Shaft-21mm | 3.0A |
| 57SHD4913-21B | 2.5N.m | 1.8° | 83mm | D Shaft-21mm | 3.0A |
| 57SHD4934-20B | 3.0N.m | 1.8° | 100mm | D Shaft-20mm | 3.0A |
