| الاسم التجاري: | Casun |
| رقم الموديل: | 23HS30-2804S-PG4 |
| موك: | 1 قطعة |
| سعر: | $27.38.38-$30.38 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

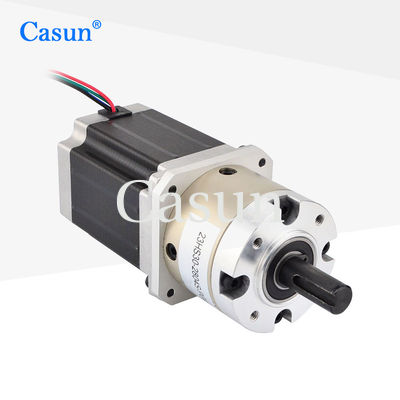

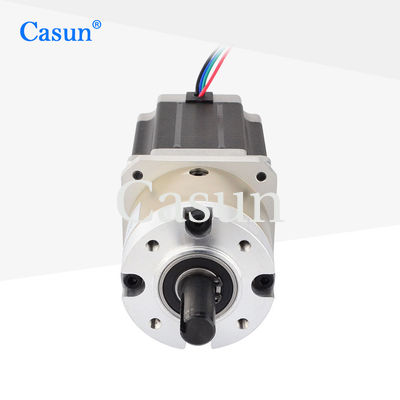

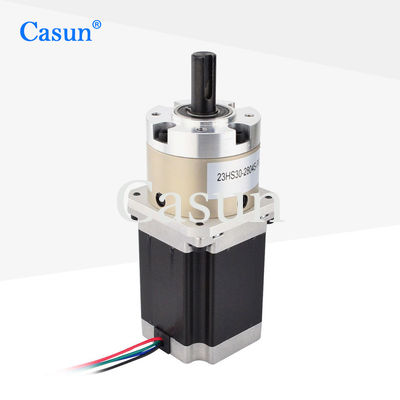

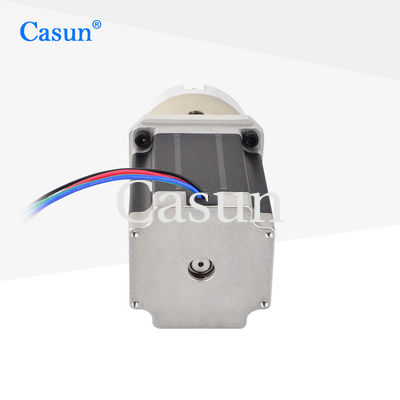

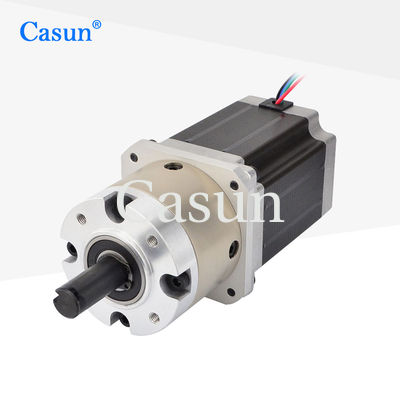

The integrated design of motor and reducer saves space, reduces external transmission components, and facilitates installation and maintenance.
It has a wide range of applications in various fields, such as CNC machine tools, robots, automation equipment, precision instruments, etc.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
57mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
2.8Amp |
|
Holding Torque
|
1.89N.m |
|
Resistance
|
1.13om |
|
Inductance
|
5.6mH |
|
Rotor Inertia
|
460g-cm² |
|
Motor weight
|
1.4kg |
|
Gear Reduction Ratio
|
4.25:1 |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Gear Box
Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°
| Motor Length | Length of Gearbox | Raio | Efficiency | ||
| 34 mm 40 mm 48 mm 60 mm |
27.2 mm | 3.71 | 90% | ||
| 5.18 | |||||
| 35 mm | 13.76 | 80% | |||
| 19.2 | |||||
| 26.8 | |||||
| 42.7 mm | 51 | 70% | |||
| 71 | |||||
| 99.5 | |||||
| 139 | |||||
