| الاسم التجاري: | Casun |
| رقم الموديل: | 42SHD4229-50PLSH |
| موك: | 1 قطعة |
| سعر: | $24-$27 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

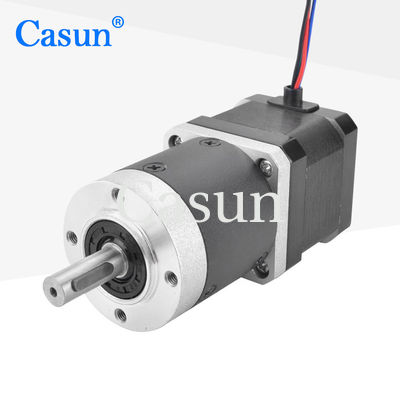

Deceleration stepper motors have high reliability due to their relatively simple mechanical structure and low maintenance costs.
The reducer can effectively absorb the vibration and impact generated during the operation of the stepper motor.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
42mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
1.68Amp |
|
Holding Torque
|
390mN.m |
|
Resistance
|
1.65 ohm |
|
Inductance
|
3.2 mH |
|
Rotor Inertia
|
57g-cm² |
|
Motor weight
|
0.9kg |
|
Gear Reduction Ratio
|
50:1 |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Gear Box
Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°
| Motor Length | Length of Gearbox | Raio | Efficiency | ||
| 34 mm 40 mm 48 mm 60 mm |
27.2 mm | 3.71 | 90% | ||
| 5.18 | |||||
| 35 mm | 13.76 | 80% | |||
| 19.2 | |||||
| 26.8 | |||||
| 42.7 mm | 51 | 70% | |||
| 71 | |||||
| 99.5 | |||||
| 139 | |||||
