| الاسم التجاري: | Casun |
| رقم الموديل: | 36SHD4401-6K |
| موك: | 1 قطعة |
| سعر: | $4.14-$6.98 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |
Capable of stable operation in different working environments, including high temperature, low temperature, and humidity, with strong adaptability.
Made with high-quality materials and processes, it has strong durability and anti-interference ability.
Features:
Step Angel |
1.8 ° |
Fram Size |
36 mm |
Number of Phase |
2 Phase |
Rated Current |
1.0 A |
Holding Torque |
100 mN.m |
Resistance |
2.15 ohm |
Inductance |
8.0 mH |
Rotor Inertia |
13.7 g-cm² |
Motor weight |
0.07 kg |
Number of leads |
4 |
Connection |
Bipolar |

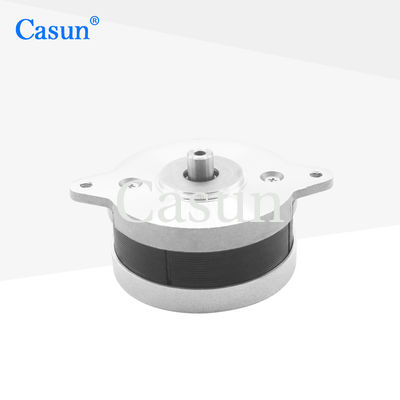

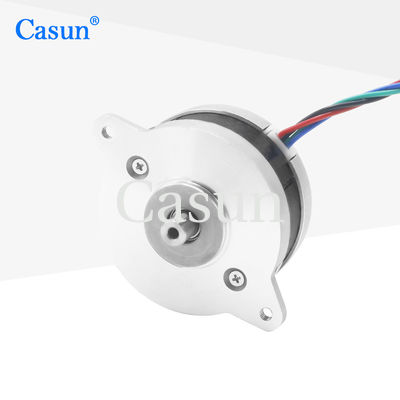

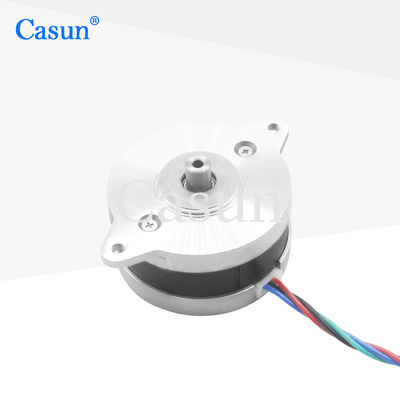

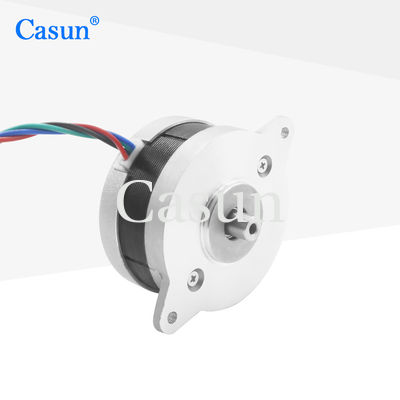

Appearance
