| الاسم التجاري: | Casun |
| رقم الموديل: | F86SHD4112-32H |
| موك: | 1 قطعة |
| سعر: | $24.92-$25.96 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

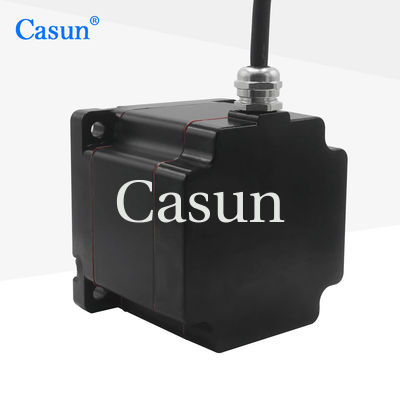

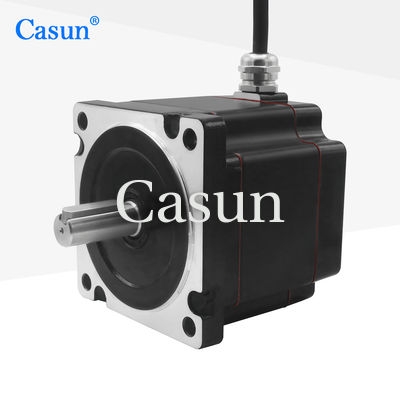

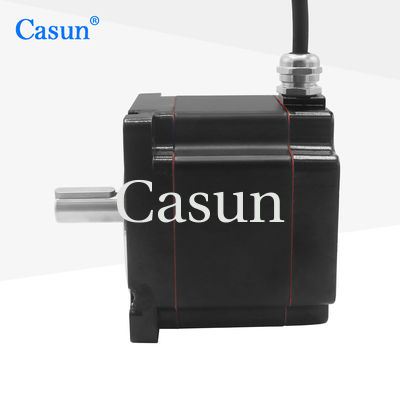

NEMA 34 is capable of driving heavier loads and is suitable for high-precision and high load motion control.
NEMA 34 stepper motors are widely used in various fields such as 3D printers, CNC machine tools, automation equipment, medical equipment, etc.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
86 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
5.0 A |
|
Holding Torque
|
5.2N.m |
|
Resistance
|
0.75ohm |
|
Inductance
|
6.4mH |
|
Rotor Inertia
|
1400 g-cm² |
|
Motor weight
|
2.3 kg |
|
Number of leads
|
4 |
|
Connection
|
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 86SHD4003-32 | 4.0N.m | 1.8° | 69mm | Key Shaft-32mm | 4.0A |
| 86SHD4101-32 | 4.5N.m | 1.8° | 76mm | Key Shaft-32mm | 4.0A |
| 86SHD4201-37 | 5.6N.m | 1.8° | 98mm | Key Shaft-37mm | 4.0A |
| 86SHD4314-37 | 6.8N.m | 1.8° | 112mm | Key Shaft-37mm | 5.0A |
| 86SHD4404-37 | 8.0N.m | 1.8° | 127mm | Key Shaft-37mm | 5.0A |
| 86SHD4505-37 | 12.0N.m | 1.8° | 150mm | Key Shaft-37mm | 5.5A |
