| الاسم التجاري: | Casun |
| رقم الموديل: | 28SHD0405-15B |
| موك: | 1 قطعة |
| سعر: | $23.94-$28.34 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

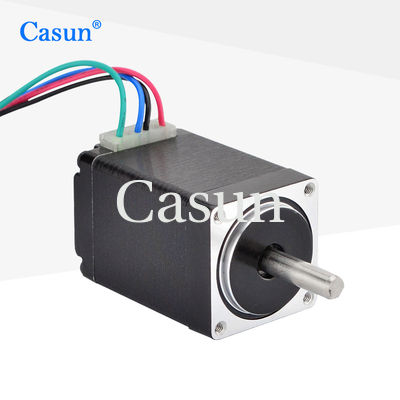

Nema11 28X28MM Hybrid Stepper Motor
The 28mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.
Use with a microstepping driver to reduce vibration and achieve higher step resolution.
Choose a baseline version or request your own customized configuration.
Features:
|
Step Angel
|
1.8 ° |
|
Rated voltage
|
3.83 V DC |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
1.5Amp |
|
Holding Torque
|
100mN.m |
|
Detent torque
|
5mN.m |
|
Phase resistance
|
2.7ohm±10%(At 20℃) |
|
Phase inductance
|
1.9mH±20%(1kHz rms) |
|
Rotor inertia
|
9g.cm |
|
Motor weight
|
0.16kg |
|
Insulation resistance
|
100MΩmin.(500V DC)
|
|
Insulation class
|
Class B |
