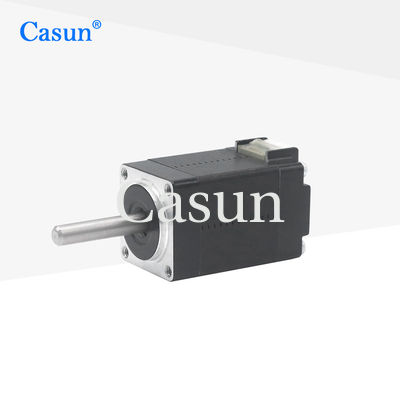

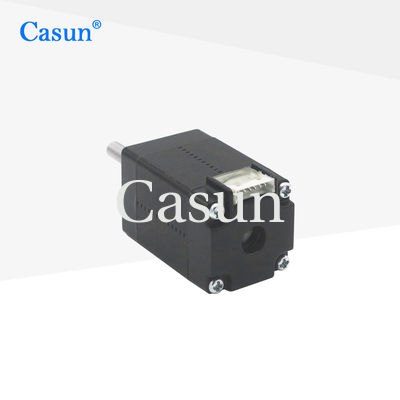

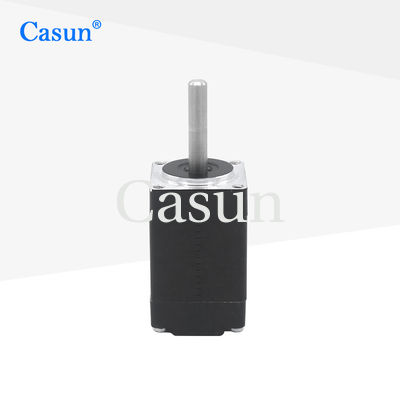

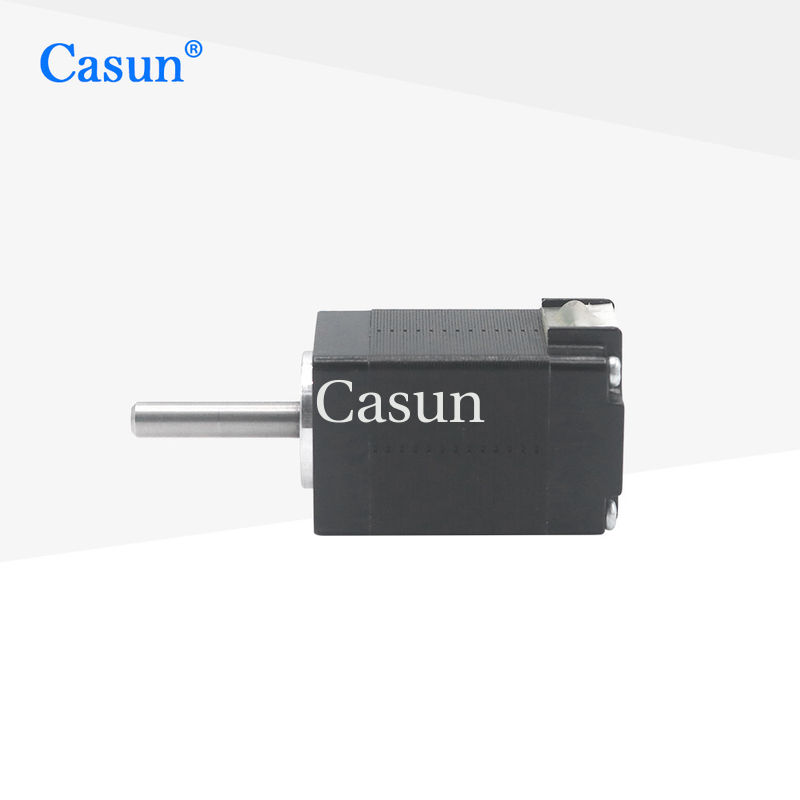

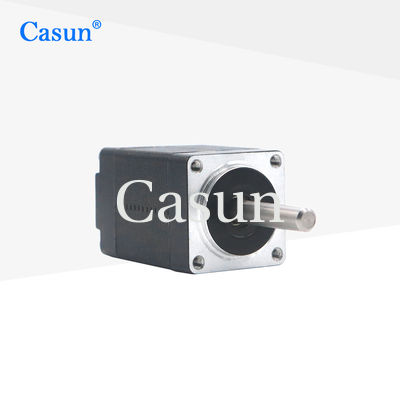

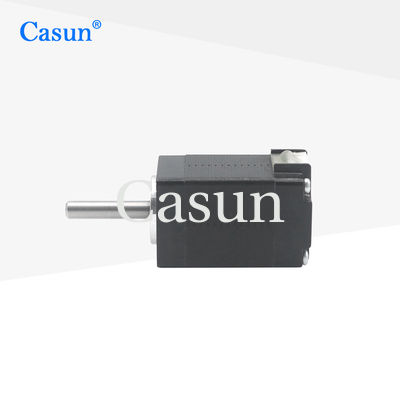

Mini Motor NEMA 11 20×20×30mm 0.6A with Office Equipment

Mini Motor NEMA 11 20×20×30mm 0.6A with Office Equipment

الاسم التجاري:	Casun
رقم الموديل:	20SHD0003-20
موك:	1 قطعة
سعر:	$5.94-$8.6
شروط الدفع:	د/أ، تي/تي، خطاب الاعتماد، د/ف
القدرة على العرض:	40000+قطعة+شهر

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

CE,ROSH,ISO

خطوة الملاك:

1.8 درجة

عقد عزم الدوران:

20mN.m

حاضِر:

0.6 أ

طول المحرك:

30 ملم

رمح:

رمح مستدير بطول 20 مم

حسب الطلب:

يمكن تصميم المحرك وتصنيعه حسب الطلب.

تفاصيل التغليف:

الكرتون: 36 × 29 × 14 سم

إبراز:

Office Equipment NEMA 11,20×20×30mm NEMA 11,Mini Motor NEMA 11

20×20×30mm NEMA 11

Mini Motor NEMA 11

وصف المنتج

The resolution can be further improved through subdivision driving technology, which is suitable for applications that require high-precision positioning.

The control signal of stepper motor is simple and easy to program and control through microcontroller or PLC.

Features:

High accuracy and torque
Offer custom services
Available in single or double shaft versions
Our products deliver high torque and precision
With 12 years of experience in China, we have served over 800 satisfied customers

Motor Specifications

Step Angel	1.8 °
Fram Size	20 mm
Number of Phase	2 Phase
Rated Current	0.6 A
Holding Torque	20 mN.m
Resistance	6.5 ohm
Inductance	2.0 mH
Rotor Inertia	2 g-cm²
Motor weight	0.06 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
