| الاسم التجاري: | Casun |
| رقم الموديل: | 57SHD4228-21H |
| موك: | 1 قطعة |
| سعر: | $9.49-$14 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

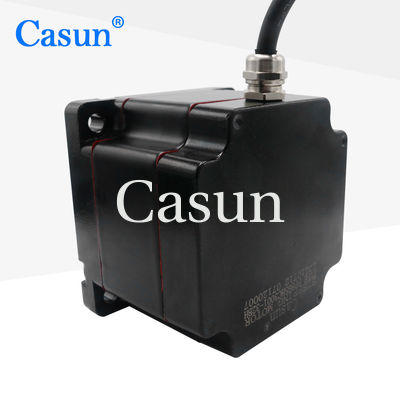

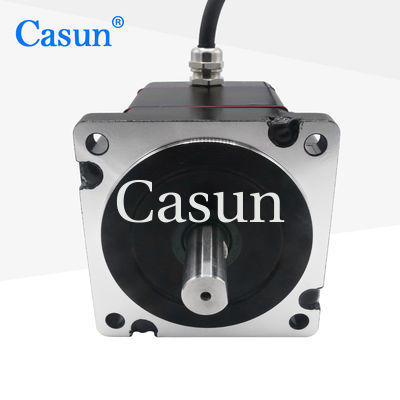

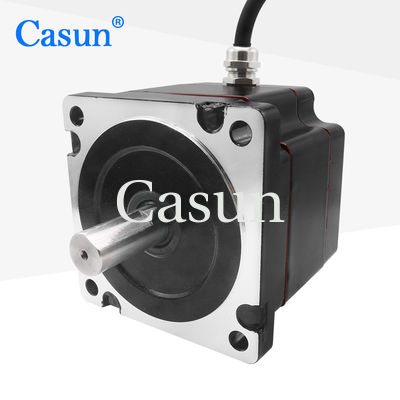

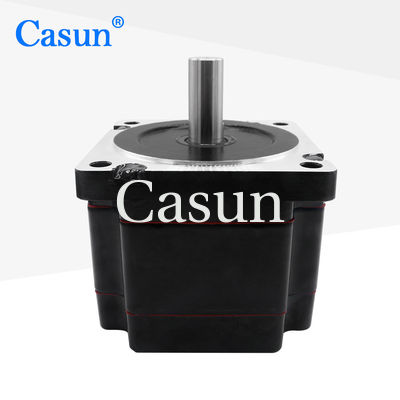

The 57mm Hybrid Stepper Motor can precisely control the rotation angle, suitable for fields that require high-precision control
Millisecond level response speed, suitable for situations with high speed response requirements
Features:
Step Angel |
1.8 ° |
Fram Size |
57 mm |
Number of Phase |
2 Phase |
Rated Current |
2.5 A |
Holding Torque |
1100 mN.m |
Resistance |
1.15 ohm |
Inductance |
3.3 mH |
Rotor Inertia |
72 g-cm² |
Motor weight |
0.62 kg |
Number of leads |
4 |
Connection |
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 57SHD4013-21B | 0.6N.m | 1.8° | 41mm | D Shaft-21mm | 1.0A |
| 57SHD4415-21B | 1.1N.m | 1.8° | 54mm | D Shaft-21mm | 3.0A |
| 57SHD4816-21B | 2.0N.m | 1.8° | 76mm | D Shaft-21mm | 3.0A |
| 57SHD4913-21B | 2.5N.m | 1.8° | 83mm | D Shaft-21mm | 3.0A |
| 57SHD4934-20B | 3.0N.m | 1.8° | 100mm | D Shaft-20mm | 3.0A |
