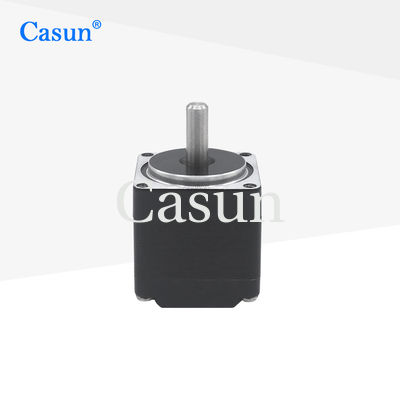

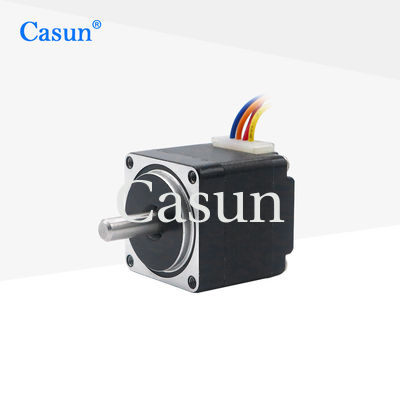

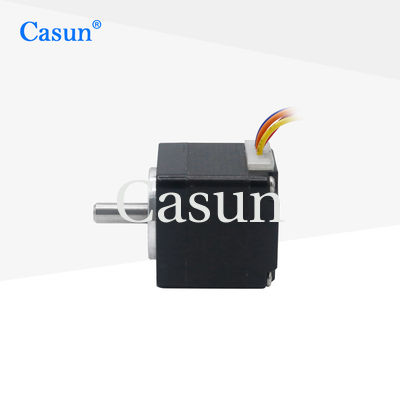

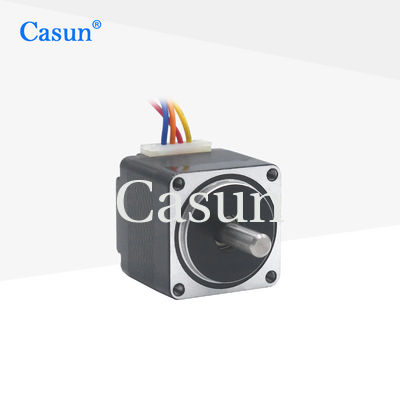

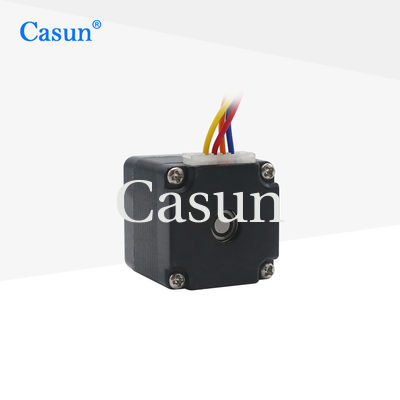

NEMA 11 Mini Stepper Motor 0.67A 95mN.m 44.5mm Body For Medical Equipment

NEMA 11 Mini Stepper Motor 0.67A 95mN.m 44.5mm Body For Medical Equipment

الاسم التجاري:	Casun
رقم الموديل:	28SHD4401-20B1
موك:	1 قطعة
سعر:	$5.94-$8.6
شروط الدفع:	د/أ، تي/تي، خطاب الاعتماد، د/ف
القدرة على العرض:	40000+قطعة+شهر

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

CE,ROSH,ISO

خطوة الملاك:

1.8 درجة

عقد عزم الدوران:

95mN.m

حاضِر:

0.67 أ

طول المحرك:

44mm

الشهادات:

CE ISO بنفايات

حسب الطلب:

يمكن تصميم المحرك وتصنيعه حسب الطلب.

تفاصيل التغليف:

الكرتون: 36 × 29 × 14 سم

إبراز:

44.5mm NEMA 11 Mini Stepper Motor,95mN.m NEMA 11 Mini Stepper Motor,0.67A NEMA 11 Mini Stepper Motor

95mN.m NEMA 11 Mini Stepper Motor

0.67A NEMA 11 Mini Stepper Motor

وصف المنتج

NEMA 11 stepper motors provide relatively high torque while maintaining a small volume

Suitable for various industries and applications, including medical equipment, laboratory instruments, small robots, precision positioning systems, etc.

Features:

Each model of stepper motor can be suitable for different scenarios
Needed dealers! !
Available in single or double shaft versions
Specialized in R&D and manufacturing
Our engineering team will reach out within 48 hours to deliver the optimal solution

Motor Specifications

Step Angel	1.8 °
Fram Size	28 mm
Number of Phase	2 Phase
Rated Current	0.67 A
Holding Torque	95 mN.m
Resistance	6.8 ohm
Inductance	5 mH
Rotor Inertia	9 g-cm²
Motor weight	0.12 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
