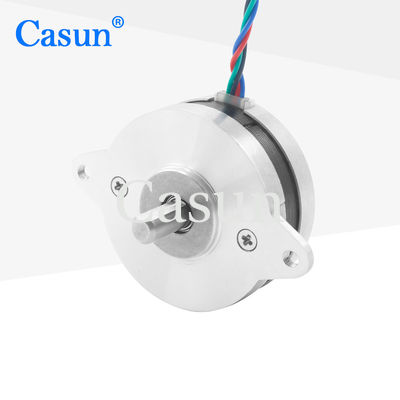

1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor

1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor

الاسم التجاري:	Casun
رقم الموديل:	36SHD4301-11B1
موك:	1 قطعة
سعر:	$4.14-$6.98
شروط الدفع:	د/أ، تي/تي، خطاب الاعتماد، د/ف
القدرة على العرض:	40000+قطعة+شهر

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

CE,ROHS,ISO

خطوة الملاك:

1.8 درجة

عقد عزم الدوران:

70mN.m

حاضِر:

0.3a

طول المحرك:

15.4mm

رمح:

طول 11 ملم

حسب الطلب:

يمكن تصميم المحرك وتصنيعه حسب الطلب.

تفاصيل التغليف:

الكرتون: 36 × 29 × 14 سم

إبراز:

1.8 Degree SMT Stepper Motor,90mN.m SMT Stepper Motor,6.6V SMT Stepper Motor

90mN.m SMT Stepper Motor

6.6V SMT Stepper Motor

وصف المنتج

They have high stiffness and good torque characteristics, which enables them to maintain good positioning accuracy even under load.

Provide different configuration options, such as different step angles, lengths, and torque levels.

Features:

Our engineering team will reach out within 48 hours to deliver the optimal solution
Expert in drivetrain solutions
Delivering high torque and accuracy
Provide bespoke services
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.3 A
Holding Torque	70 mN.m
Resistance	15.5 ohm
Inductance	7 mH
Rotor Inertia	4 g-cm²
Motor weight	0.06 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters,

installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
