| الاسم التجاري: | Casun |
| رقم الموديل: | 42SHD4034-100GPH |
| موك: | 1 قطعة |
| سعر: | $9.68-$14 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

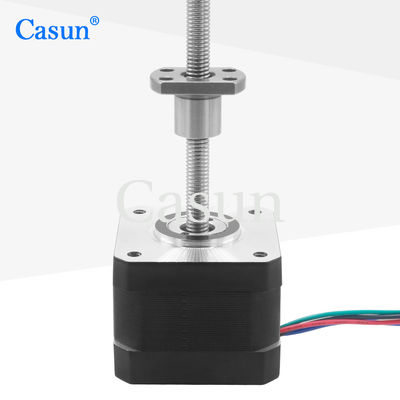

Ball screw can withstand large loads while maintaining good motion smoothness and accuracy, making it suitable for heavy-duty applications.
Precision machining, automated assembly lines, laboratory equipment, medical equipment, 3D printers, and CNC machine tools, etc.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
42 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
1.28A |
|
Holding Torque
|
300 mN.m |
|
Resistance
|
5.0 ohm |
|
Inductance
|
6.2 mH |
|
Rotor Inertia
|
38 g-cm² |
|
Motor weight
|
0.2 kg |
|
Lead Screw
|
Ball Screw SFK0601 |
|
Connection
|
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Shaft Radial Play:0.02Max. (450g-load)
Shaft Axial Play:0.08Max. (450g-load)
Max. radial force:28N (20mm from the flange)
Max. axial force):10N
| Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
