| الاسم التجاري: | Casun |
| رقم الموديل: | P35SHD4127-19GQ |
| موك: | 1 قطعة |
| سعر: | $18.9-$24 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

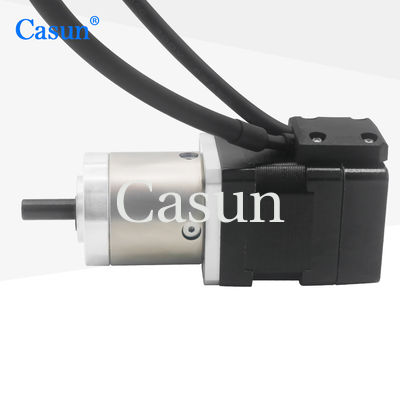

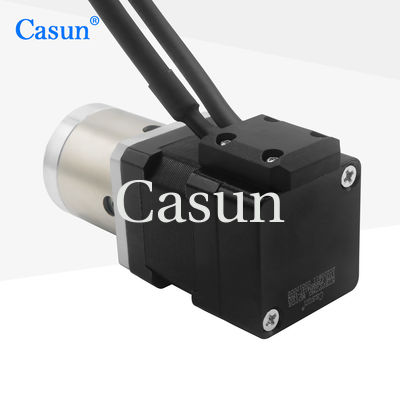

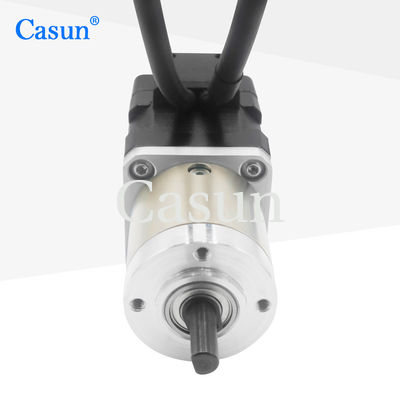

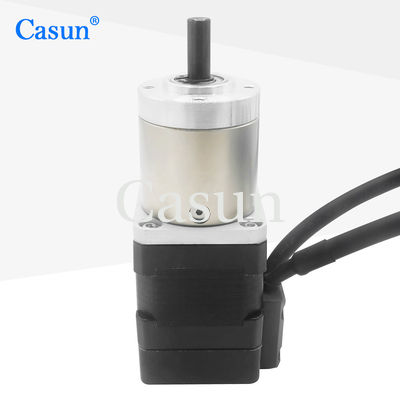

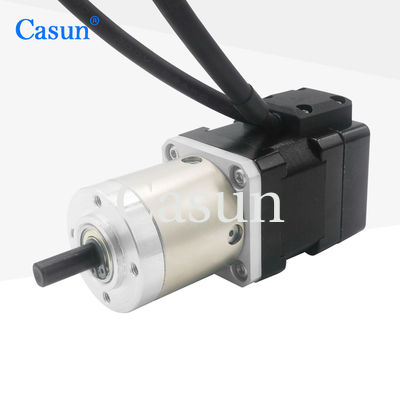

NEMA 14 Gear Box Stepping Motor With Encoder 0.18N.M 1.0A For PLC
Compatible with existing control systems such as PLCs, motion controllers, etc., making integration relatively simple.
Small automation systems, water pumps, electric door locks, image scanners, and precision positioning tools.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
35 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
1.0 A |
|
Holding Torque
|
180 mN.m |
|
Resistance
|
3.2 ohm |
|
Inductance
|
4.5 mH |
|
Rotor Inertia
|
18 g-cm² |
|
Motor weight
|
0.36 kg |
|
Gear Reduction Ratio
|
19.2:1 |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Gear Box
Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06m
Axial Play of Shaft:≤0.3mm
Backlash at No-load:≤1.5°
| Motor Length | Length of Gearbox | Raio | Efficiency | ||
| 26 mm 34 mm 40 mm |
29.1 mm | 3.71 | 90% | ||
| 5.18 | |||||
| 36.8 mm | 13.76 | 80% | |||
| 19.2 | |||||
| 26.8 | |||||
| 44.6 mm | 51 | 70% | |||
| 71 | |||||
| 99.5 | |||||
| 139 | |||||
