| الاسم التجاري: | Casun |
| رقم الموديل: | اس جي اكس-1605-120 |
| موك: | 1 قطعة |
| سعر: | US $22.00 - 50.00/ Piece |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T |
| القدرة على العرض: | 100000/قطعة شهريا |

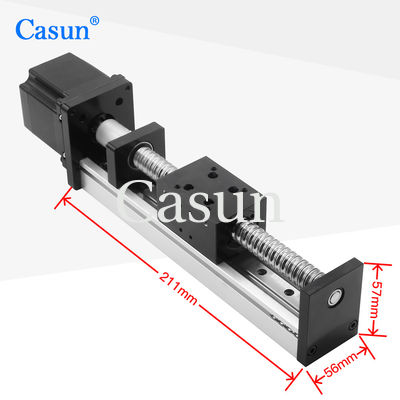

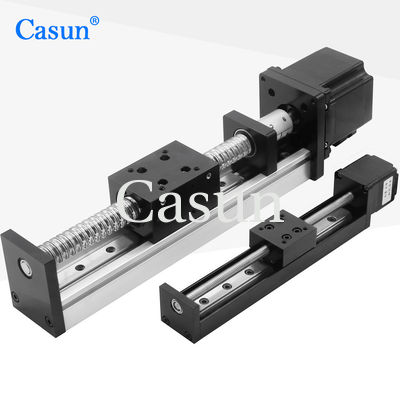

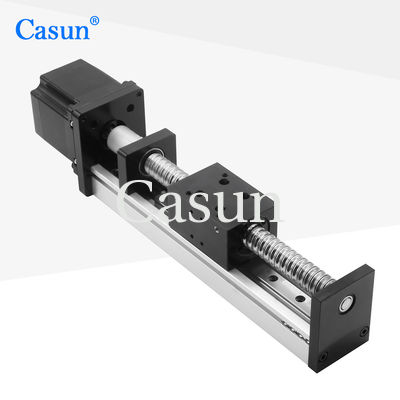

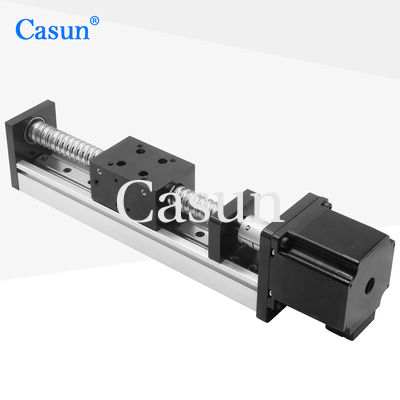

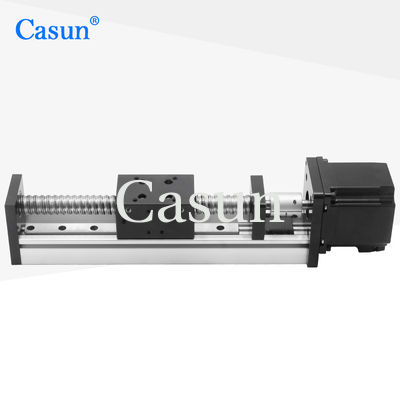

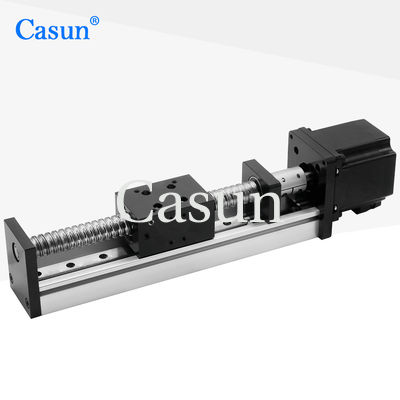

Micro Nema 23 Ball Screw Slider Rail With Nema 23 Hybrid Stepper Motors With CE Certifications
The NEMA 23 ballscrew linear slider rail with stepper motor has advantages such as high precision, high torque output, good response speed, and reliability.
The simple control method makes them easy to integrate into various systems.
Features:
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 57SHD4013-21B | 0.6N.m | 1.8° | 41mm | D Shaft-21mm | 1.0A |
| 57SHD4415-21B | 1.1N.m | 1.8° | 54mm | D Shaft-21mm | 3.0A |
| 57SHD4816-21B | 2.0N.m | 1.8° | 76mm | D Shaft-21mm | 3.0A |
| 57SHD4913-21B | 2.5N.m | 1.8° | 83mm | D Shaft-21mm | 3.0A |
| 57SHD4934-20B | 3.0N.m | 1.8° | 100mm | D Shaft-20mm | 3.0A |
