| الاسم التجاري: | Casun |
| رقم الموديل: | 20SHD0001-7A |
| موك: | 1 قطعة |
| سعر: | $6.86-$10.5 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

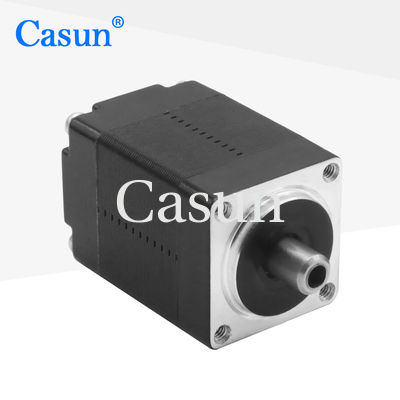

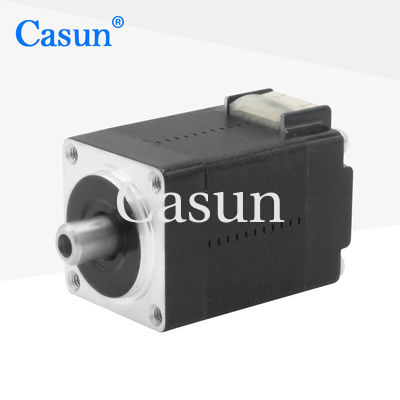

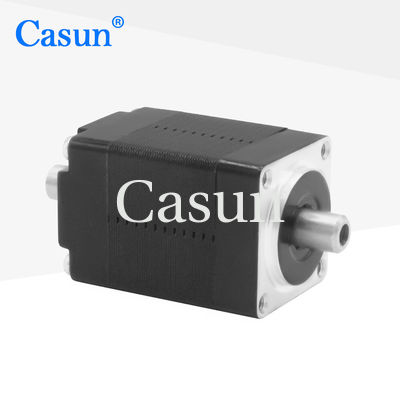

Nema 8 Dual Hollow Shaft Stepper Motor 30mm Body 0.6A With CE ROHS
With two output shafts, it can drive two loads simultaneously, achieving precise multi axis control.
Very useful in applications that require simultaneous control of multiple moving components.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
20 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
0.6 A |
|
Holding Torque
|
15 mN.m |
|
Resistance
|
6.5 Om |
|
Inductance
|
1.7mH |
|
Rotor Inertia
|
2 g-cm² |
|
Motor weight
|
0.06 kg |
|
Number of leads
|
4 |
|
Connection
|
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Casun Model | General Model | Angle | Motor Length | Rated Current | Holding Torque |
| B20SHD4353-10 | 8HS11-0204S | 1.8° | 28mm | 0.2A | 0.016 N.m |
| 8HS12-0506S | 1.8° | 28mm | 0.5A | 0.018N.m | |
| 20SHD0501-10 | 8HS13-0604S | 1.8° | 34.3mm | 0.6A | 0.018N.m |
| 8HS15-0304S | 1.8° | 38mm | 0.3A | 0.03N.m | |
| 20SHD4255-10X | 8HS15-0604S | 1.8° | 38mm | 0.6A | 0.04N.m |
| 20SHD4101-20 | 1.8° | 42mm | 0.8A | 0.03N.m |
