| الاسم التجاري: | Casun |
| رقم الموديل: | 28SHD4218-15P |
| موك: | 1 قطعة |
| سعر: | $8.77-$16.25 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

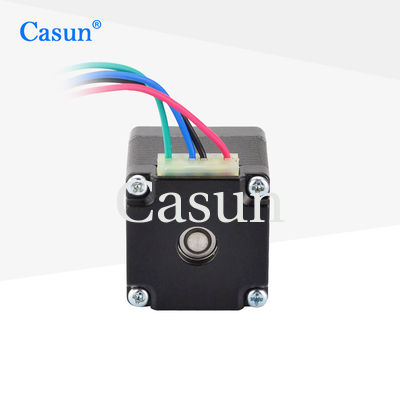

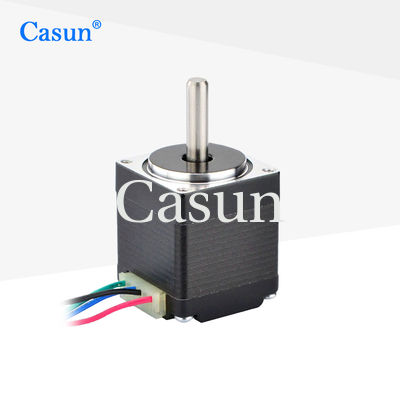

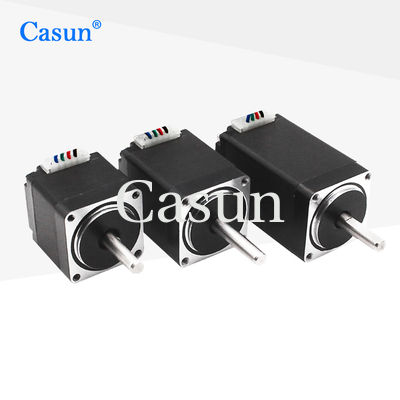

Small Size Nema 11 Stepper Motor Casun 0.5A Dc Motors With Certifications
NEMA 11Stepper Motor, 28*28*32 mm, 0.5A, CE, ROHS, ISO
It can move forward and backward. The motor can go forward and backward by twisting the screw rod in the opposite direction.
can be precisely changed by controlling the signal.
Features:
expert in drivetrain solutions
Seek vendors for high-tech and electronic industry equipment with "multiple international certifications"!
Expert manufacturing, development, and research
alterations upon request
|
Step Angel
|
1.8 ° |
|
Fram Size
|
28 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
0.5 Amp |
|
Holding Torque
|
60mN.m |
|
Resistance
|
9.5ohm |
|
Inductance
|
5.9mH |
|
Rotor Inertia
|
9g-cm² |
|
Motor weight
|
0.12kg |
|
Lead Screw
|
Screw |
|
Connection
|
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Shaft Radial Play:0.02Max. (450g-load)
Shaft Axial Play:0.08Max. (450g-load)
Max. radial force:28N (20mm from the flange)
Max. axial force):10N
| Body Length | Diameter of Screw | Pitch | Length of Screw | ||
| 20 mm 34 mm 40 mm 48 mm 60 mm |
5 | 2 | 20-1000 mm | ||
| 8 | |||||
| 6.35 | 1.27 | ||||
| 3.175 | |||||
| 6.35 | |||||
| 6.5 | 3 | ||||
| 6.35 | |||||
| 8 | 1 | ||||
| 2 | |||||
| 4 | |||||
| 8 | |||||
| 12 | |||||
Download
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Stepper Motor,BLDC Motor
4. why should you buy from us not from other suppliers?
We are specialized in producing and selling stepper motors for more than 11 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;
Language Spoken:English,Chinese,Japanese
