| الاسم التجاري: | Casun |
| رقم الموديل: | P35SHD4150-9SKH |
| موك: | 1 قطعة |
| سعر: | $4.14-$6.98 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |
NEMA 14 Hollow Stepper Motor Dual Shaft 1.0A 0.19N.M For Image Scanners

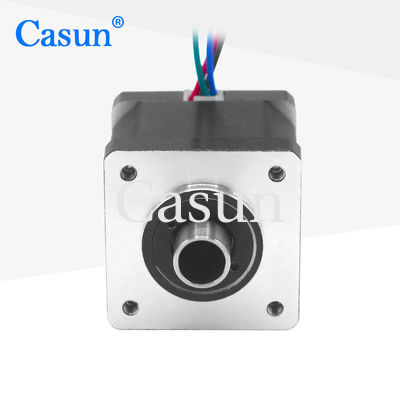

The central part of the rotor is designed to be hollow and can transmit signals such as gas, liquid, or optical fibers through axial through-holes.
Consisting of two independent rotors, each rotor can be independently controlled.
Features:
Step Angel |
1.8 ° |
Fram Size |
35 mm |
Number of Phase |
2 Phase |
Rated Current |
1.0 A |
Holding Torque |
190 mN.m |
Resistance |
3.5 ohm |
Inductance |
3.6 mH |
Rotor Inertia |
20 g-cm² |
Motor weight |
0.18 kg |
Number of leads |
4 |
Connection |
Bipolar |
Appearance
Download
