| الاسم التجاري: | Casun |
| رقم الموديل: | 57SHD4824-20B |
| موك: | 1 قطعة |
| سعر: | $3.14-$5 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

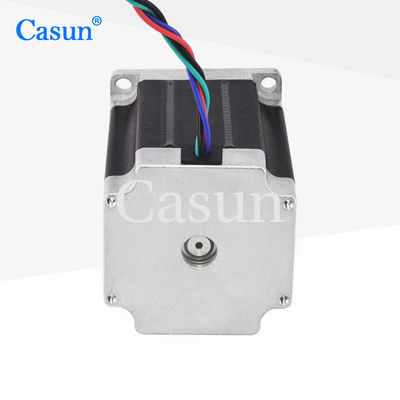

1.32N.M NEMA 23 Steper Motors 57x57x76mm Special Offer 1.0A For Knitting Machine
The NEMA23 stepper motor can drive equipment such as looms and spinning machines, effectively controlling their speed and load.
By controlling the current and motion plan, production efficiency and quality can be improved.
Features:
Step Angel |
1.8 ° |
Fram Size |
57 mm |
Number of Phase |
2 Phase |
Rated Current |
1.0 A |
Holding Torque |
1.32 N.m |
Resistance |
6.5 ohm |
Inductance |
20 mH |
Rotor Inertia |
460 g-cm² |
Motor weight1 |
1 kg |
Number of leads |
4 |
Connection |
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 57SHD4013-21B | 0.6N.m | 1.8° | 41mm | D Shaft-21mm | 1.0A |
| 57SHD4415-21B | 1.1N.m | 1.8° | 54mm | D Shaft-21mm | 3.0A |
| 57SHD4816-21B | 2.0N.m | 1.8° | 76mm | D Shaft-21mm | 3.0A |
| 57SHD4913-21B | 2.5N.m | 1.8° | 83mm | D Shaft-21mm | 3.0A |
| 57SHD4934-20B | 3.0N.m | 1.8° | 100mm | D Shaft-20mm | 3.0A |
Download
Encoder |
Brake |
Gearbox |
Shaft |
|
|
|
|
