| الاسم التجاري: | Casun |
| رقم الموديل: | 14SHD4001-15B |
| موك: | 1 قطعة |
| سعر: | $3.14-$5 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

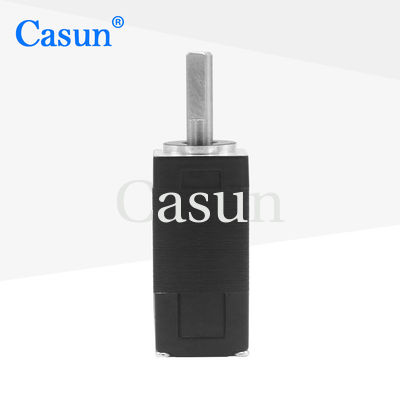

NEMA 6 Stepper Motor Small 5.8mN.M 14*14*30mm With Video Conferencing Machine
NEMA 6 stepper motor with small size, high torque density, fast response, and high accuracy.
Through reasonable design and manufacturing processes, they can achieve precise positioning and reliable motion control.
Features:
Step Angel |
1.8 ° |
Fram Size |
14 mm |
Number of Phase |
2 Phase |
Rated Current |
1.2 A |
Holding Torque |
5.8 mN.m |
Resistance |
22 ohm |
Inductance |
4.0 mH |
Rotor Inertia |
5.8 g-cm² |
Motor weight |
0.03 kg |
Number of leads |
4 |
Connection |
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
