| الاسم التجاري: | Casun |
| رقم الموديل: | E39D40044004-05 |
| موك: | 1 قطعة |
| سعر: | $18-$23 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |
Multisport Motor NEMA 14 Multilayer Stepper Motor 150m.N For Industry Robot
nema14 hybrid stepper motor 39x39x35mm 150mN.m Multisport motor
The Nema14 stepper motor you described has the following specifications:
Step angle: 1.8 degrees per step
Motor size: 39 x 39mm
Rated current: 0.8A
Holding torque: 150mN.m
Weight: 0.22kg (4.2 oz)
This is a motor independently developed and patented by our company.
E39 series multi-motion stepping motor is a new type of patented stepping motor (patent number: ZL2013 2 0370752.8).
Non-interfering, precise structure, shaft runout less than 0.025, suitable for industrial robots, stage lights and other automation control fields.
Motor Specifications
Step Angel |
1.8 ° |
Fram Size |
39mm |
Number of Phase |
2 Phase |
Rated Current |
0.4A |
Holding Torque |
150mN.m |
Resistance |
30ohm |
Inductance |
45mH |
Rotor Inertia |
20 g-cm² |
Motor weight |
0.12kg |
Number of leads |
4 |
Connection |
Bipolar |

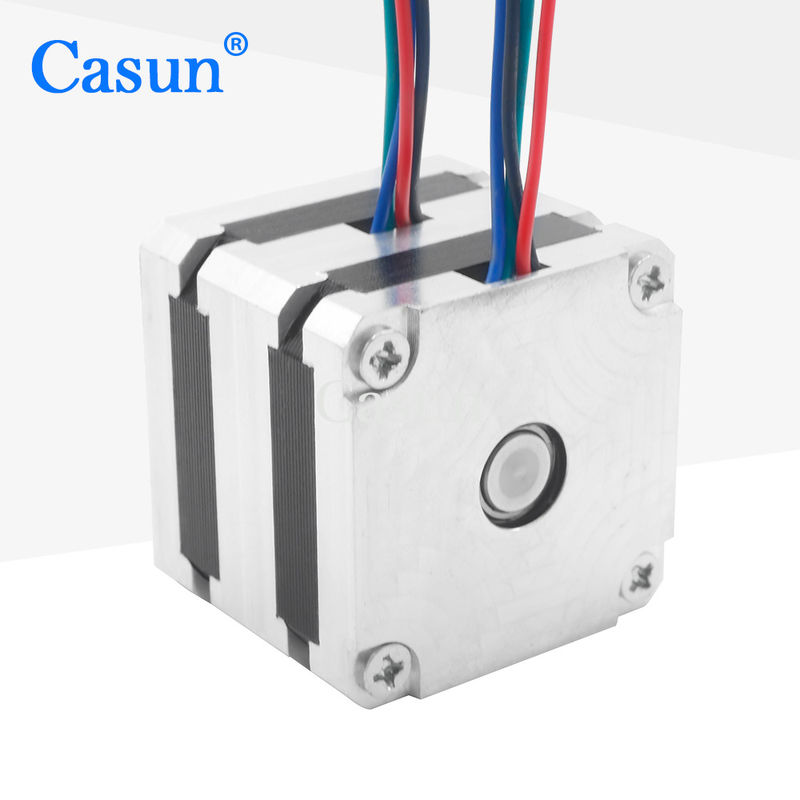

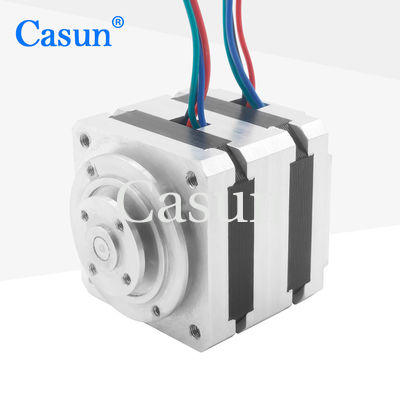

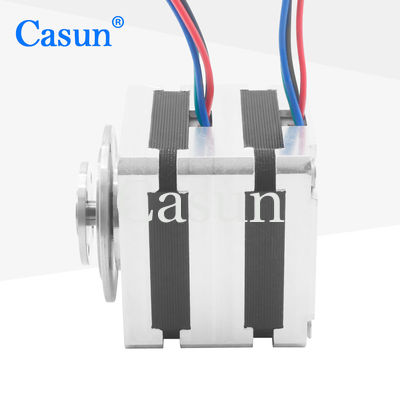

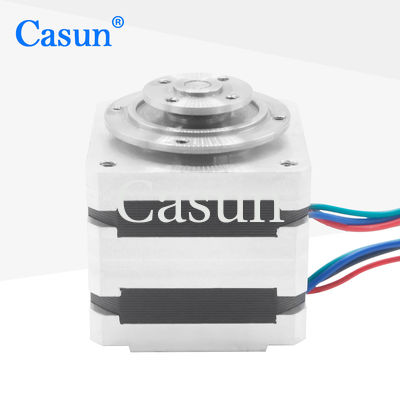

Appearance
