| الاسم التجاري: | Casun |
| رقم الموديل: | FP86SHC3001-32BH |
| موك: | 1 قطعة |
| سعر: | $9.49-$14 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

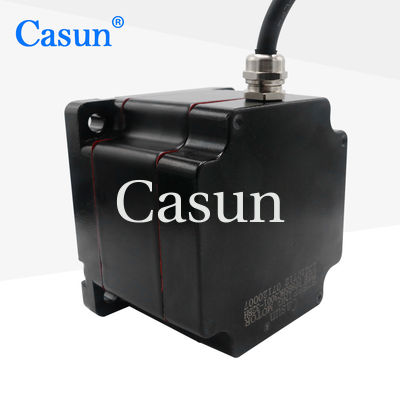

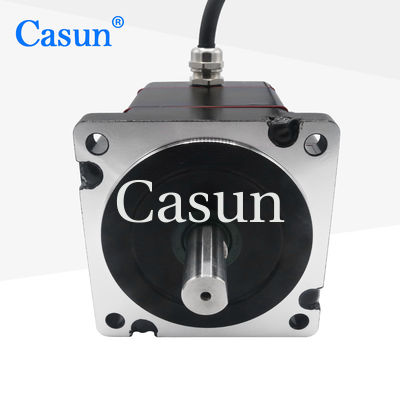

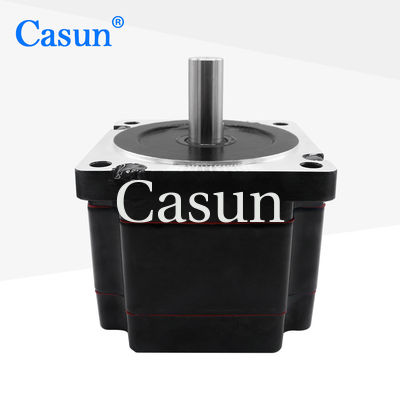

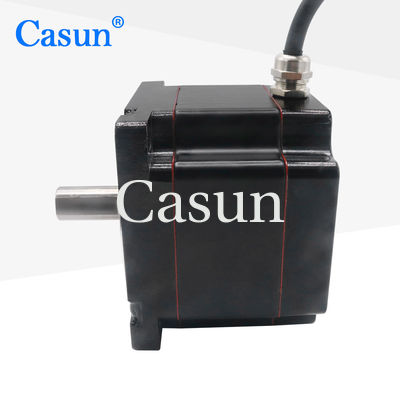

Micro Stepper Motor 3 Phase 1.2 Degree NEMA 34 2.0N.M 2.5A With CE RoHs
The NEMA 34 stepper motor excellent performance in driving high loads or applications with high torque requirements.
Large robots, automated production lines, five axis CNC machine tools.
Features:
|
Step Angel
|
1.2 ° |
|
Fram Size
|
86 mm |
|
Number of Phase
|
3 Phase |
|
Rated Current
|
2.5A |
|
Holding Torque
|
2N.m |
|
Resistance
|
3.7ohm |
|
Inductance
|
11mH |
|
Rotor Inertia
|
1000 g-cm² |
|
Motor weight
|
1.7 kg |
|
Number of leads
|
4 |
|
Connection
|
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 86SHD4003-32 | 4.0N.m | 1.8° | 69mm | Key Shaft-32mm | 4.0A |
| 86SHD4101-32 | 4.5N.m | 1.8° | 76mm | Key Shaft-32mm | 4.0A |
| 86SHD4201-37 | 5.6N.m | 1.8° | 98mm | Key Shaft-37mm | 4.0A |
| 86SHD4314-37 | 6.8N.m | 1.8° | 112mm | Key Shaft-37mm | 5.0A |
| 86SHD4404-37 | 8.0N.m | 1.8° | 127mm | Key Shaft-37mm | 5.0A |
| 86SHD4505-37 | 12.0N.m | 1.8° | 150mm | Key Shaft-37mm | 5.5A |
