| الاسم التجاري: | Casun |
| رقم الموديل: | 86SHD4508-34H |
| موك: | 1 قطعة |
| سعر: | $9.49-$14 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

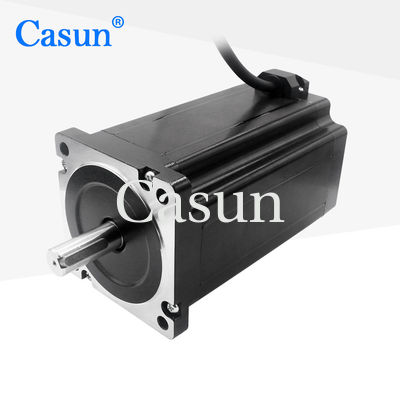

The NEMA 34 stepper motor has good adaptability and can adapt to different working environments and application requirements.
Excellent performance in driving high loads or applications with high torque requirements.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
86 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
6.0A |
|
Holding Torque
|
12N.m |
|
Resistance
|
1.0ohm |
|
Inductance
|
5mH |
|
Rotor Inertia
|
3600 g-cm² |
|
Motor weight
|
5.0 kg |
|
Number of leads
|
4 |
|
Connection
|
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 86SHD4003-32 | 4.0N.m | 1.8° | 69mm | Key Shaft-32mm | 4.0A |
| 86SHD4101-32 | 4.5N.m | 1.8° | 76mm | Key Shaft-32mm | 4.0A |
| 86SHD4201-37 | 5.6N.m | 1.8° | 98mm | Key Shaft-37mm | 4.0A |
| 86SHD4314-37 | 6.8N.m | 1.8° | 112mm | Key Shaft-37mm | 5.0A |
| 86SHD4404-37 | 8.0N.m | 1.8° | 127mm | Key Shaft-37mm | 5.0A |
| 86SHD4505-37 | 12.0N.m | 1.8° | 150mm | Key Shaft-37mm | 5.5A |
