| الاسم التجاري: | Casun |
| رقم الموديل: | 42SHD4456-24DH |
| موك: | 1 قطعة |
| سعر: | $18-$28 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

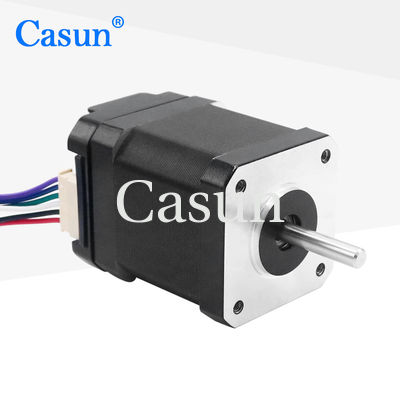

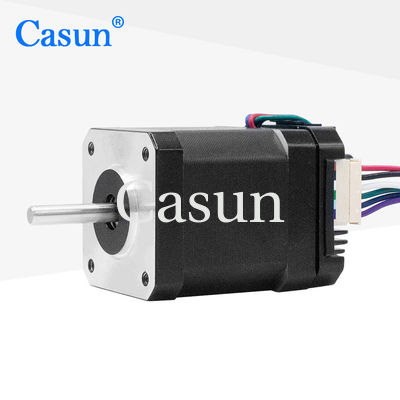

Casun integrated Stepper motor 550mN.m 3.74V DC Nema 17 Hybrid Stepper Motor 42x42x48mm with factory price
Integrated motor refers to a motor system that incorporates multiple components or functions into a single unit. It typically combines the motor itself with various other elements such as sensors, controllers, and power electronics, creating a compact and self-contained system.
The integration of these components offers several advantages over traditional motor setups, including improved performance, reduced size and weight, simplified installation, and enhanced efficiency. By integrating the motor with other components, the system can be optimized for specific applications, resulting in better overall performance.
Integrated motors are commonly used in various industries and applications, including robotics, automation, automotive systems, medical devices, and industrial machinery. They can be found in applications such as robotic arms, CNC machines, electric vehicles, pumps, fans, and many others.
Features:
Step Angel |
1.8 ° |
Fram Size |
42 mm |
Number of Phase |
2 Phase |
Rated Current |
1.7 A |
Holding Torque |
550 mN.m |
Resistance |
1.8 ohm |
Inductance |
4.5 mH |
Rotor Inertia |
2.2 g-cm² |
Motor weight |
0.38 kg |
Number of leads |
4 |
Connection |
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
