| الاسم التجاري: | Casun |
| رقم الموديل: | P35SHD4860-90GKH |
| موك: | 1 قطعة |
| سعر: | $4.14-$6.98 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |
The rigidity of the ball screw transmission mechanism is relatively high, which can reduce the mechanical clearance during the transmission process.
Small automation systems, water pumps, electric door locks, image scanners
Features:
Step Angel |
1.8 ° |
Fram Size |
35 mm |
Number of Phase |
2 Phase |
Rated Current |
1.5 A |
Holding Torque |
360 mN.m |
Resistance |
2.7 ohm |
Inductance |
3.2 mH |
Rotor Inertia |
35 g-cm² |
Motor weight |
0.35 kg |
Number of leads |
4 |
Connection |
Bipolar |

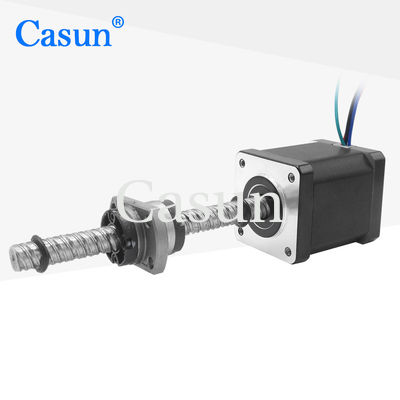

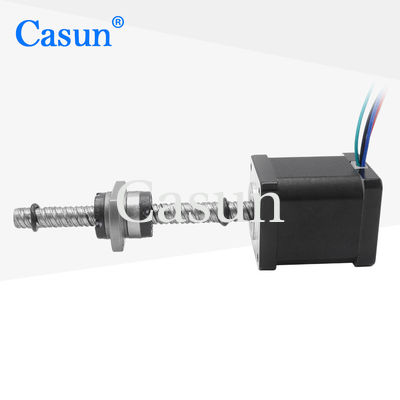

Appearance
