| الاسم التجاري: | Casun |
| رقم الموديل: | 42SHY4102-2A1 |
| موك: | 1 قطعة |
| سعر: | $8-$10.84 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

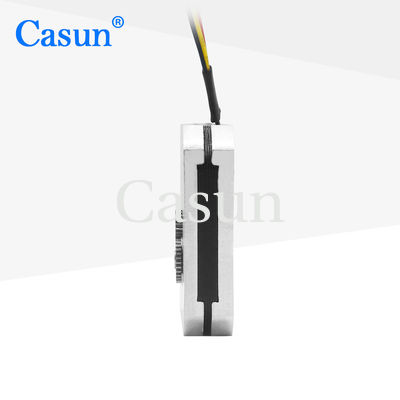

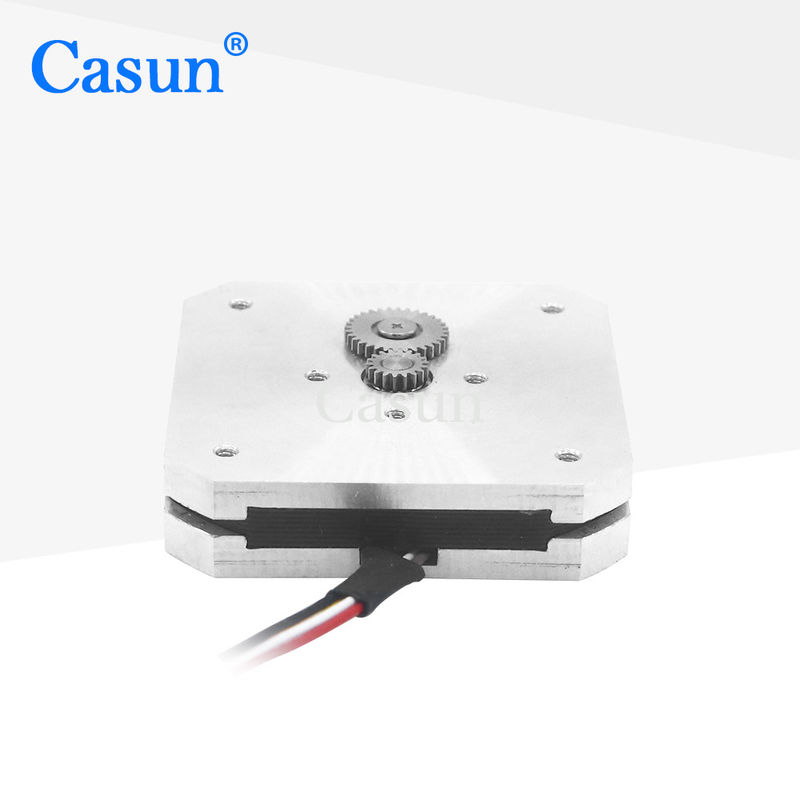

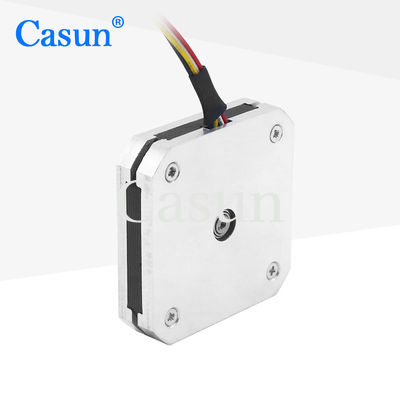

Casun pancake steppper motor 57x57x13mm flat stepper motor with high stepper motor
NEMA17 Flat stepper motor 42mmx42mmx19.8mm pancake step motor for medical beauty equipment robotics
The Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.
Use with a microstepping driver to reduce vibration and achieve higher step resolution.
Choose a baseline version or request your own customized configuration.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
42mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
0.5A |
|
Holding Torque
|
36mN.m |
|
Resistance
|
3.5 om |
|
Inductance
|
1.8mH |
|
Rotor Inertia
|
12 g-cm² |
|
Motor weight
|
0.06kg |
|
Number of leads
|
4 |
|
Connection
|
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Motor Length | Current | Holding Torque | |
| P28SHD4611 | 9.5mm | 0.5A | 16mN.m | |
| P28SHD4701 | 10.6mm | 0.5A | 20mN.m | |
| P28SHD4750 | 13-15mm | 0.5A | 25mN.m | |
| P28SHD4950 | 17.9mm | 0.5A | 35mN.m | |
