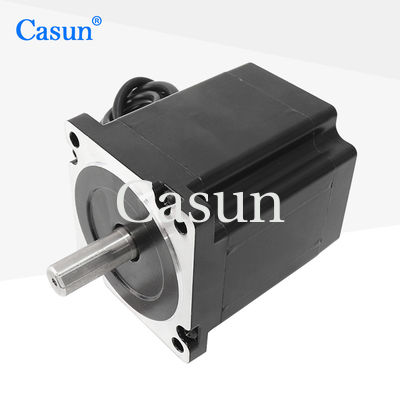

Hybrid stepper motor two phase nema34 86X86X98mm for cnc stepper
The Nema34 stepper motor is a type of high-torque stepper motor that is commonly used in CNC machines, 3D printers, robotics, and other precision motion control applications. It has a standard flange size of 86x86mm and a length of 98mm, and is capable of delivering up to 5.6N.m of torque at a current of 5.5A.
The Nema34 stepper motor is designed to operate at high efficiency, with low power consumption and minimal noise and vibration. It is also designed to be durable and reliable, with a long service life and minimal maintenance requirements.
Motor Specifications
Step Angel |
1.8 ° |
Fram Size |
86mm |
Number of Phase |
2 Phase |
Rated Current |
4A |
Holding Torque |
5.6N.m |
Resistance |
-ohm |
Inductance |
-mH |
Rotor Inertia |
-g-cm² |
Motor weight |
2.9 kg |
Number of leads |
4 |
Connection |
Bipolar |
Appearance
customization options for motors include special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and other features.Customization of motors can also include changes to the motor's performance characteristics, such as torque, speed, and efficiency. This may involve adjustments to the winding parameters or other components of the motor, as well as testing and validation to ensure that the custom motor meets the customer's performance requirements.
