| الاسم التجاري: | Casun |
| رقم الموديل: | 60SHD4503-20 |
| موك: | 1 قطعة |
| سعر: | $8.00-$16 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

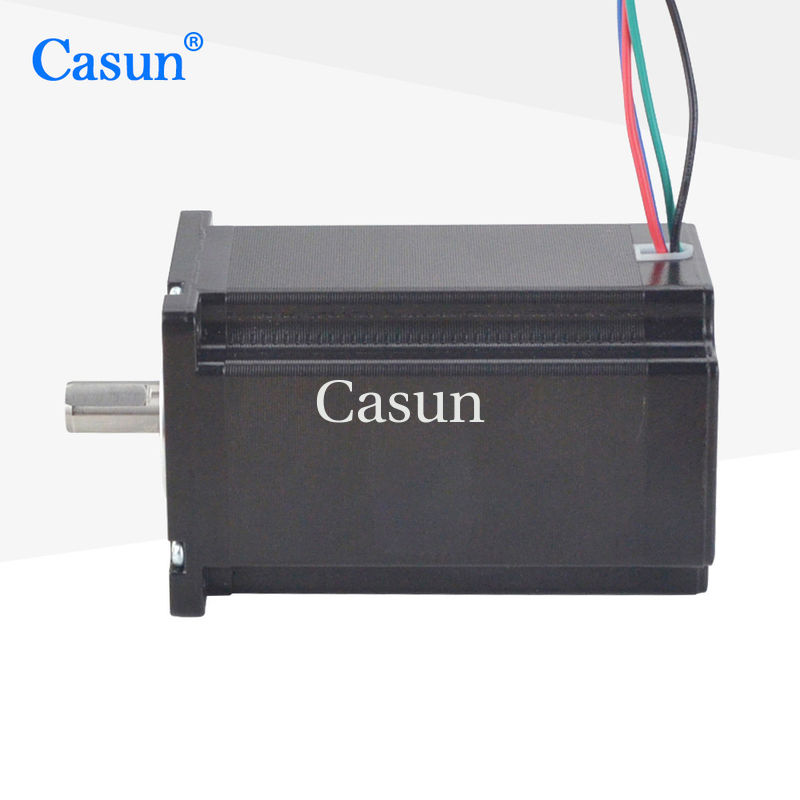

Step motor NEMA 24 2300mN.m 60x60x67 hybrid stepping motor for Automation equipment
The Nema24 60MMX60MM Hybrid Open Loop Stepper Motor is a type of stepper motor that is commonly used in CNC machines, 3D printers, and robotics applications. It is designed to provide high torque and precise positioning, making it suitable for a wide range of applications.
One of the key features of the Nema24 60MMX60MM Hybrid Open Loop Stepper Motor is its hybrid design, which combines the best features of both permanent magnet and variable reluctance stepper motors. This allows it to provide high torque and precise positioning, while also operating efficiently and reliably.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
60 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
3.5 Amp |
|
Holding Torque
|
2300mN.m |
|
Resistance
|
-hm |
|
Inductance
|
-mH |
|
Rotor Inertia
|
-g-cm² |
|
Motor weight
|
0.8kg |
|
|
|
|
|
|
Motor
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
Download
We have the ability to customize motor features such as shafts, winding parameters, installation dimensions, lead wires, and connectors can help to ensure that the motor is a perfect fit for the customer's application. This can lead to improved efficiency, increased reliability, and reduced downtime.
