| الاسم التجاري: | Casun |
| رقم الموديل: | S28D41114111-C27L |
| موك: | 1 قطعة |
| سعر: | $26-$31 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

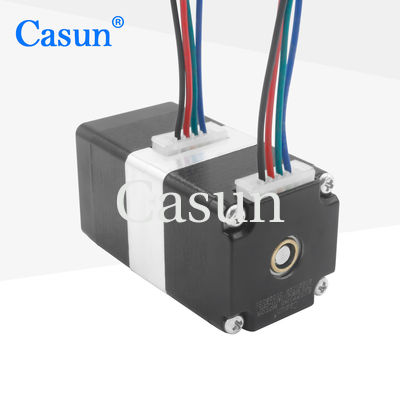

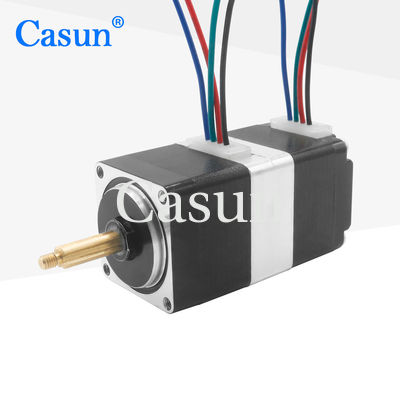

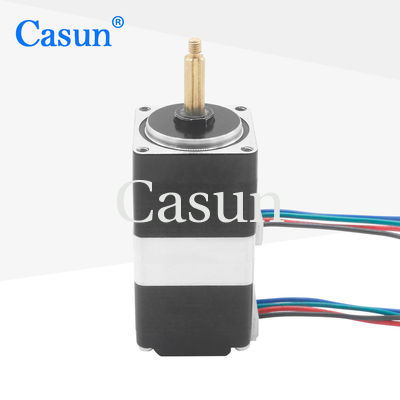

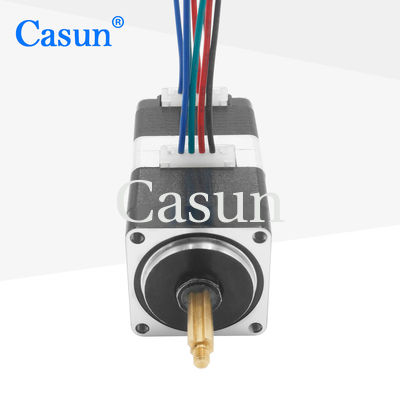

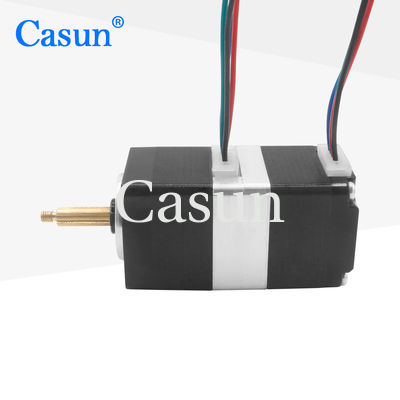

Casun Non Captive Stepper Motor NEMA 11 Multi Motion 6.16V 55mN.m CE ROHS
NEMA 11 Non Captive Stepping Motor Multi Motion 28*28*55mm 55mN.m with CE ROHS
The 28mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.
Use with a microstepping driver to reduce vibration and achieve higher step resolution.
Choose a baseline version or request your own customized configuration.
Features:
Appearance
Step Angel |
1.8 ° |
Fram Size |
28 mm |
Number of Phase |
2 Phase |
Rated Current |
0.67 A |
Holding Torque |
55 mN.m |
Resistance |
9.2 ohm |
Inductance |
5.7 mH |
Rotor Inertia |
- |
Motor weight |
- |
Number of leads |
4 |
Connection |
Bipolar |
| Body Length | Diameter of Screw | Pitch | Length of Screw | |||
| 27 mm 30 mm 38 mm 42 mm 47 mm |
3.5 | 0.6096 | 20-1000 mm | |||
| 1.2192 | ||||||
| 2.44 | ||||||
| 4 | ||||||
| 4 | 2 | |||||
| 4.76 | 5.08 | |||||
| 5 | 2 | |||||
| 4 | ||||||
| 8 | ||||||
| 5.08 | ||||||
| 5.56 | 4.8768 | |||||
