| الاسم التجاري: | Casun |
| رقم الموديل: | 35SHD0001-20 |
| موك: | 1 قطعة |
| سعر: | $4.14-$6.98 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

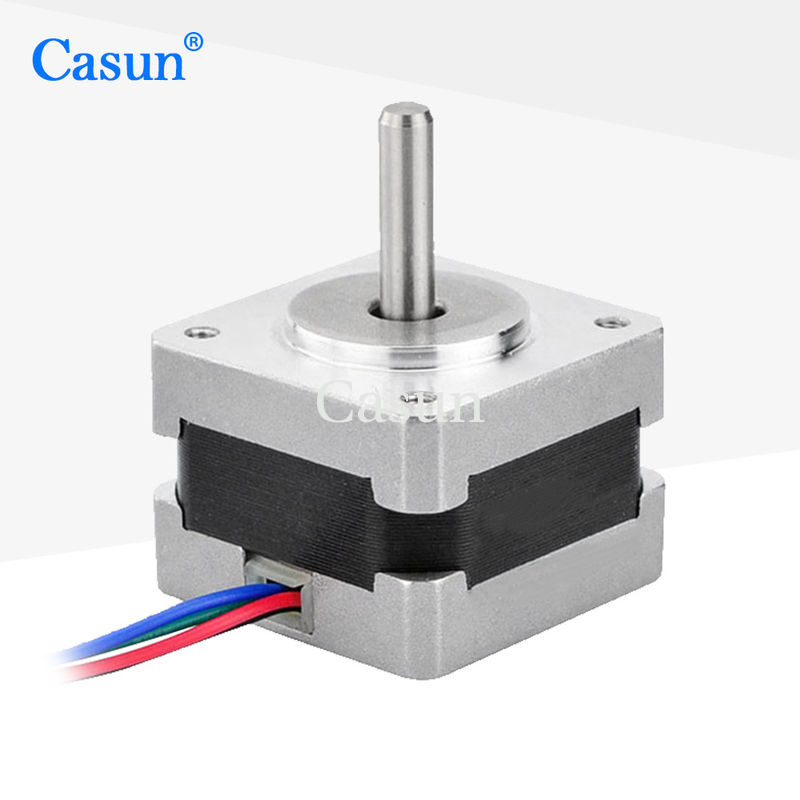

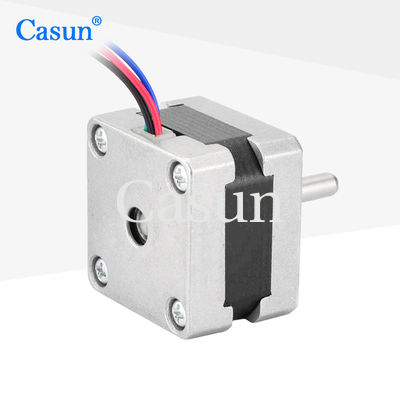

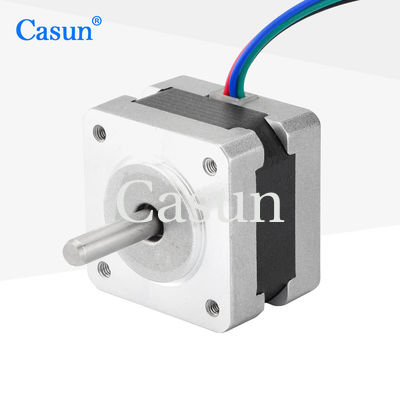

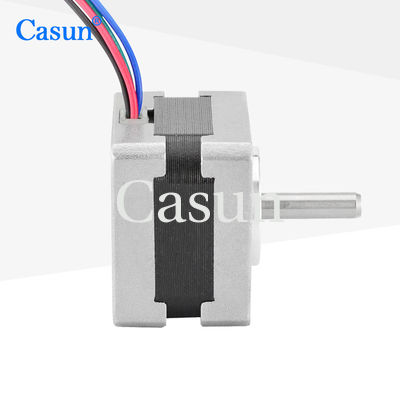

High Torque Casun 0.4A NEMA 14 Stepper Motor 35mm 12V DC Stepper Motor
35X35x26mm 0.4A 2 Phase Bipolar Hybrid 12V DC NEMA 14 Thin Stepper Motor
The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.
Use with a microstepping driver to reduce vibration and achieve higher step resolution.
Choose a baseline version or request your own customized configuration.
Features:
Appearance
Step Angel |
1.8 ° |
Fram Size |
35 mm |
Number of Phase |
2 Phase |
Rated Current |
0.4A |
Holding Torque |
100 mN.m |
Resistance |
20 ohm |
Inductance |
20 mH |
Rotor Inertia |
12 g-cm² |
Motor weight |
0.15 kg |
Number of leads |
4 |
Connection |
Bipolar |
Download
Encoder |
Brake |
Gearbox |
Shaft |
|
|
|
|
