| الاسم التجاري: | Casun |
| رقم الموديل: | 17HS15-1684D-HG50 |
| موك: | 1 قطعة |
| سعر: | $24-$27 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

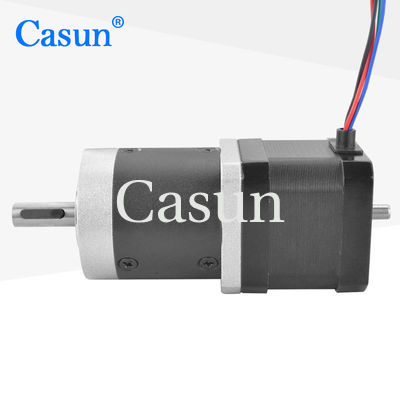

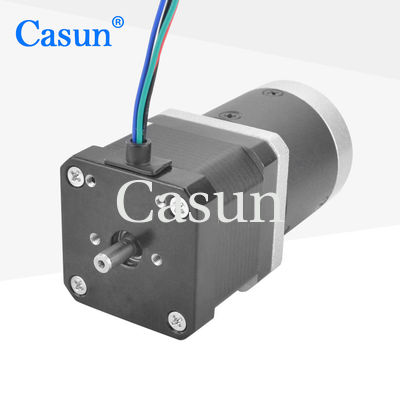

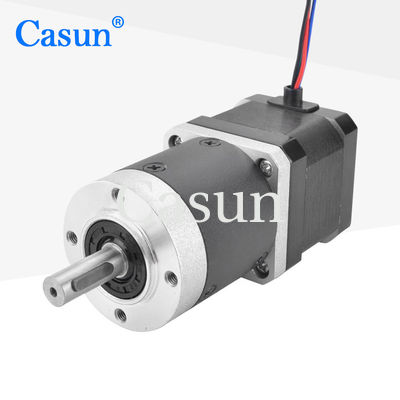

Nema 17 stepper motor gear reduction 2.8V 1.6Amp 42mmx42mm stepper motor with planetary gearbox
The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.
Use with a microstepping driver to reduce vibration and achieve higher step resolution.
Choose a baseline version or request your own customized configuration.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
42mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
1.68Amp |
|
Holding Torque
|
390mN.m |
|
Resistance
|
1.65 ohm |
|
Inductance
|
3.2 mH |
|
Rotor Inertia
|
57g-cm² |
|
Motor weight
|
0.9kg |
|
Gear Reduction Ratio
|
50:1 |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Gear Box
Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°
| Motor Length | Length of Gearbox | Raio | Efficiency | ||
| 34 mm 40 mm 48 mm 60 mm |
27.2 mm | 3.71 | 90% | ||
| 5.18 | |||||
| 35 mm | 13.76 | 80% | |||
| 19.2 | |||||
| 26.8 | |||||
| 42.7 mm | 51 | 70% | |||
| 71 | |||||
| 99.5 | |||||
| 139 | |||||
