| الاسم التجاري: | Casun |
| رقم الموديل: | P28SHD4611-12SK |
| موك: | 1 قطعة |
| سعر: | $13.3-$13.8 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

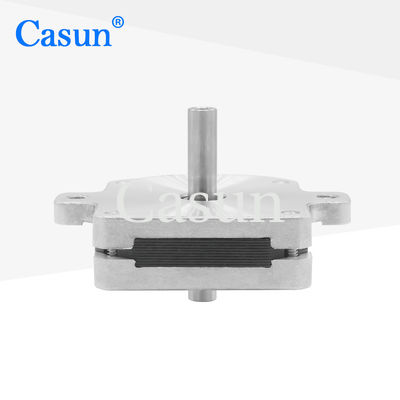

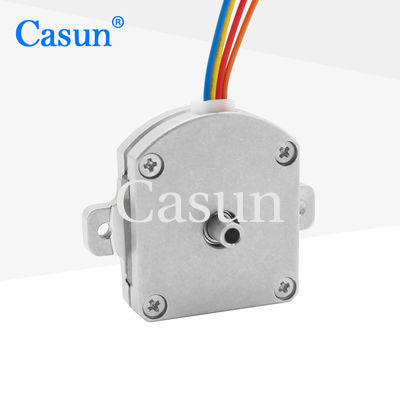

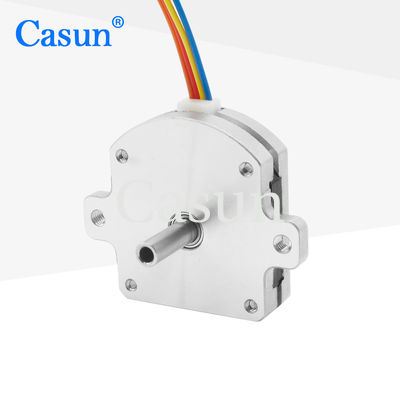

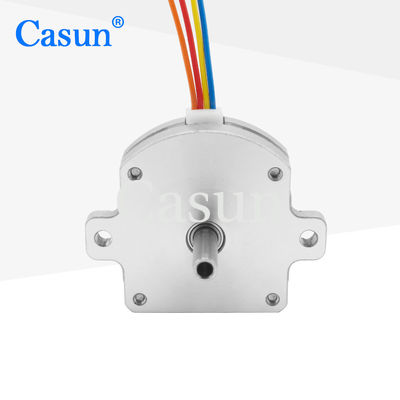

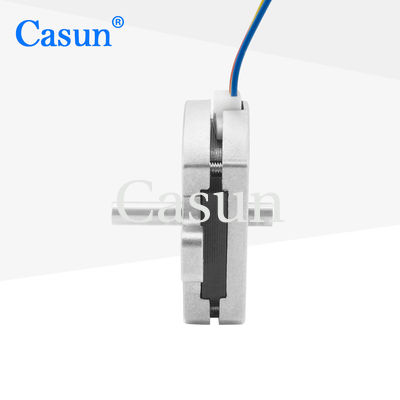

Flat Stepper motor small volume low noise 2 Phase 1.8 Degree 28mm PM Stepper Motor for Laser Printer
The Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.
Use with a microstepping driver to reduce vibration and achieve higher step resolution.
Choose a baseline version or request your own customized configuration.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
28mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
0.5Amp |
|
Holding Torque
|
16 mN.m |
|
Resistance
|
3.5 om |
|
Inductance
|
0.9mH |
|
Rotor Inertia
|
2 g-cm² |
|
Motor weight
|
0.03kg |
|
Number of leads
|
4 |
|
Connection
|
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Motor Length | Current | Holding Torque | |
| P28SHD4611 | 9.5mm | 0.5A | 16mN.m | |
| P28SHD4701 | 10.6mm | 0.5A | 20mN.m | |
| P28SHD4750 | 13-15mm | 0.5A | 25mN.m | |
| P28SHD4950 | 17.9mm | 0.5A | 35mN.m | |
