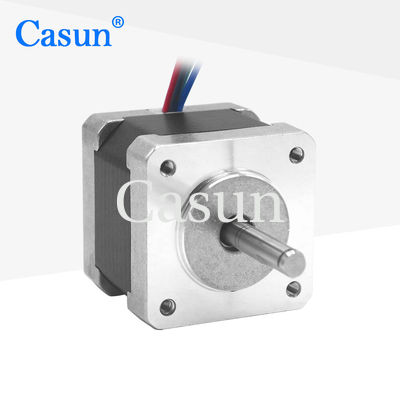

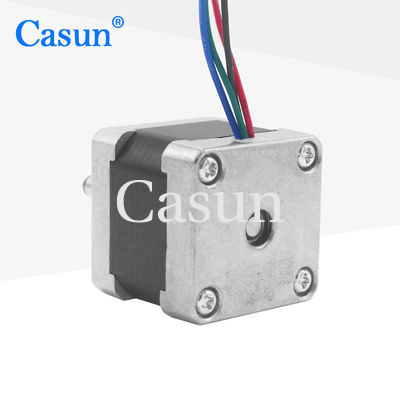

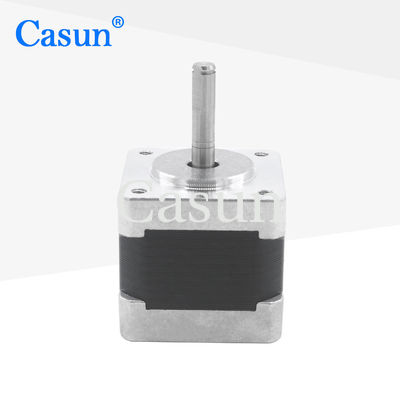

100mNm Casun Stepper Motor 2 Phase 4 Wire For Monitoring Equipment

100mNm Casun Stepper Motor 2 Phase 4 Wire For Monitoring Equipment

الاسم التجاري:	Casun
رقم الموديل:	P35SHD4119-24P
موك:	1 قطعة
سعر:	$4.14-$6.98
شروط الدفع:	د/أ، تي/تي، خطاب الاعتماد، د/ف
القدرة على العرض:	40000+قطعة+شهر

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

CE,ROHS,ISO

خطوة الملاك:

1.8 درجة

عقد عزم الدوران:

100mN.m

حاضِر:

0.4A

طول المحرك:

34 مللي متر

رمح:

عمود خاص بطول 24 مم

حسب الطلب:

يمكن تصميم المحرك وتصنيعه حسب الطلب.

تفاصيل التغليف:

الكرتون: 36 × 29 × 14 سم

إبراز:

Casun Stepper Motor 2 Phase 4 Wire,100mNM Casun Stepper Motor,100mNm Stepper Motor 2 Phase

100mNM Casun Stepper Motor

100mNm Stepper Motor 2 Phase

وصف المنتج

The 35mm stepper motor also has good speed response, which can quickly and smoothly change the motion state.

Image scanners, electronic door locks, water pumps, small automation systems, and precise positioning devices

Features:

Bipolar or unipolar versions available
Each stepper motor model has use in a variety of situations
Our engineers will be in touch within 48 hours to provide the best solution
CE and RoHS approved
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.75 A
Holding Torque	230 mN.m
Resistance	6.4 ohm
Inductance	8.9 mH
Rotor Inertia	14 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
