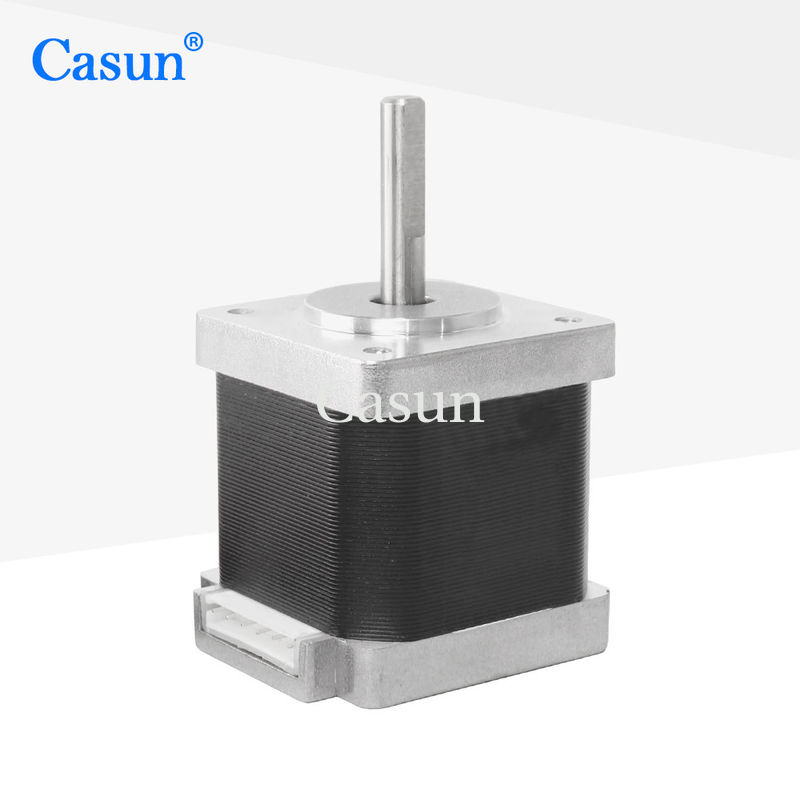

Robot 200mNm NEMA 14 Stepper Motor 35x35x40mm Bipolar 1.8 Deg

Robot 200mNm NEMA 14 Stepper Motor 35x35x40mm Bipolar 1.8 Deg

الاسم التجاري:	Casun
رقم الموديل:	35SHD0803-24B
موك:	1 قطعة
سعر:	$4.14-$6.98
شروط الدفع:	د/أ، تي/تي، خطاب الاعتماد، د/ف
القدرة على العرض:	40000+قطعة+شهر

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

CE,ROHS,ISO

خطوة الملاك:

1.8 درجة

عقد عزم الدوران:

200mN.m

حاضِر:

1.2 أ

طول المحرك:

40 ملم

رمح:

طحن رمح مسطح بطول 24 مم

حسب الطلب:

يمكن تصميم المحرك وتصنيعه حسب الطلب.

تفاصيل التغليف:

الكرتون: 36 × 29 × 14 سم

إبراز:

Robot 200mNm NEMA 14 Stepper Motor,200mNm NEMA 14 Stepper Motor,35x35mm Bipolar Stepper Motor

200mNm NEMA 14 Stepper Motor

35x35mm Bipolar Stepper Motor

وصف المنتج

The 35mm stepper motor has a simple structure, small size, light weight, and is easy to install and maintain.

35mm stepper motors are widely used in fields such as industrial automation, precision instruments, and digital equipment.

Features:

To give the best solution, our engineers will contact you within 48 hours
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Ten-year guarantee and purchase with assurance

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.2 A
Holding Torque	200 mN.m
Resistance	2.5 ohm
Inductance	3.8 mH
Rotor Inertia	18 g-cm²
Motor weight	0.21 kg
Number of leads	4
Connection	Bipolar

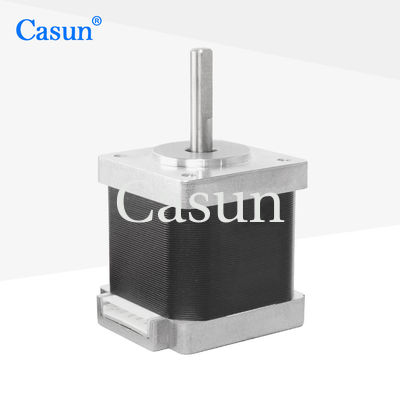

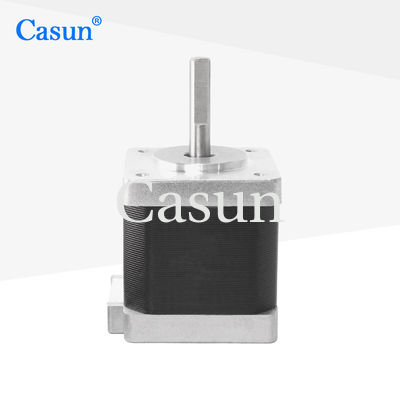

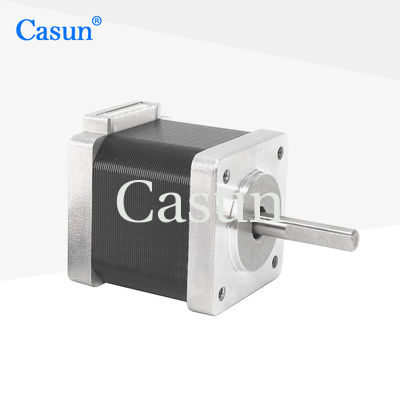

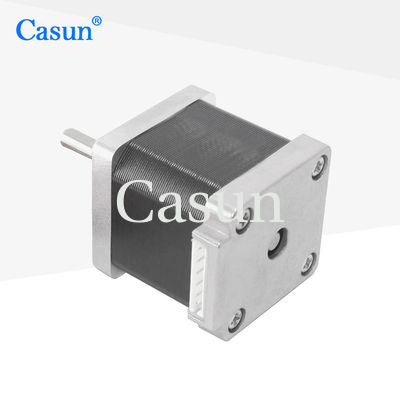

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
