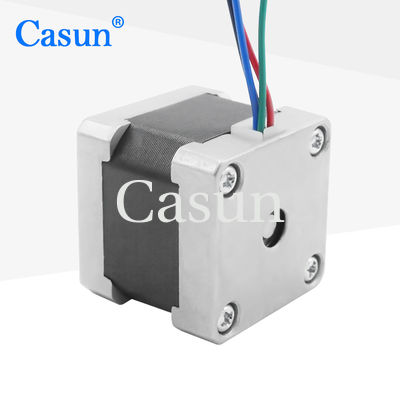

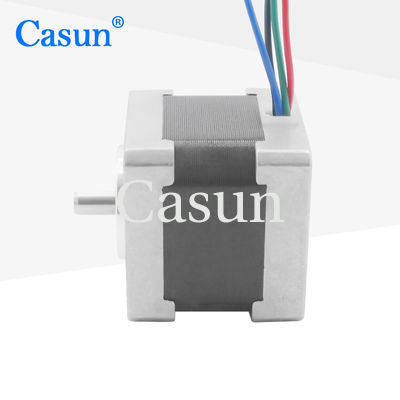

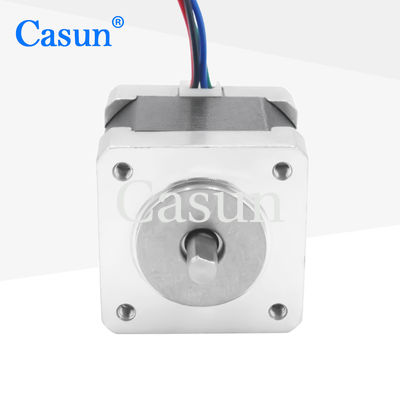

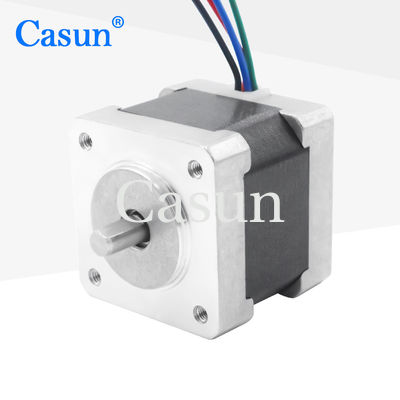

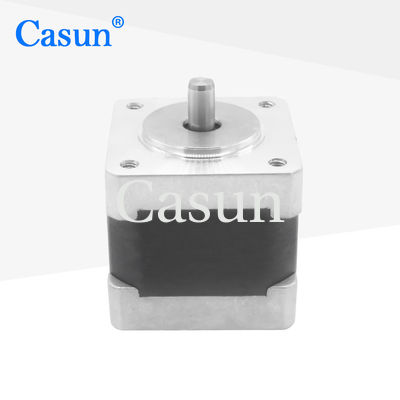

0.15Nm 1A NEMA 14 Stepper Motor 35x35x34mm 2 Phase 4 Wire Micro Stepper Motor

0.15Nm 1A NEMA 14 Stepper Motor 35x35x34mm 2 Phase 4 Wire Micro Stepper Motor

الاسم التجاري:	Casun
رقم الموديل:	35SHD4103-10B
موك:	1 قطعة
سعر:	$4.14-$6.98
شروط الدفع:	د/أ، تي/تي، خطاب الاعتماد، د/ف
القدرة على العرض:	40000+قطعة+شهر

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

CE,ROHS,ISO

خطوة الملاك:

1.8 درجة

عقد عزم الدوران:

155 م.ن.م

حاضِر:

1.0 أ

طول المحرك:

34 مللي متر

رمح:

طحن رمح مسطح بطول 10 مم

حسب الطلب:

يمكن تصميم المحرك وتصنيعه حسب الطلب.

تفاصيل التغليف:

الكرتون: 36 × 29 × 14 سم

إبراز:

0.15Nm 1A NEMA 14 Stepper Motor,34mm 2 Phase Micro Stepper Motor,1A NEMA 14 Stepper Motor 35mm

34mm 2 Phase Micro Stepper Motor

1A NEMA 14 Stepper Motor 35mm

وصف المنتج

The 35mm stepper motor can quickly start and stop after receiving control signals, and has good response speed.

Image scanners, electronic door locks, water pumps, small automation systems, and precise positioning devices

Features:

For equipment used in the high-tech and electrical industries, provide "multiple international certifications"
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	155 mN.m
Resistance	3.8 ohm
Inductance	5.8 mH
Rotor Inertia	14 g-cm²
Motor weight	0.18 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters,

installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
