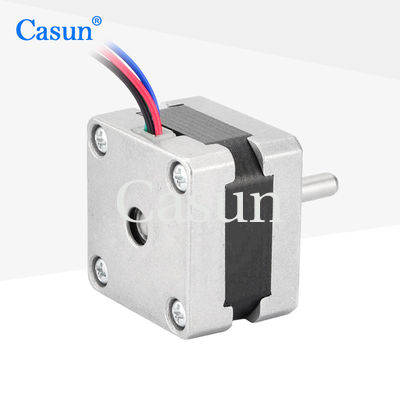

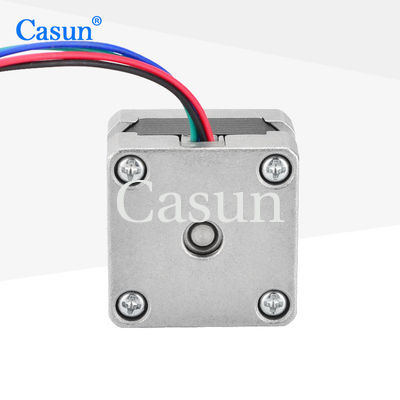

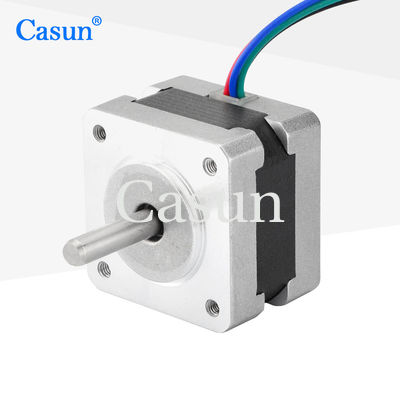

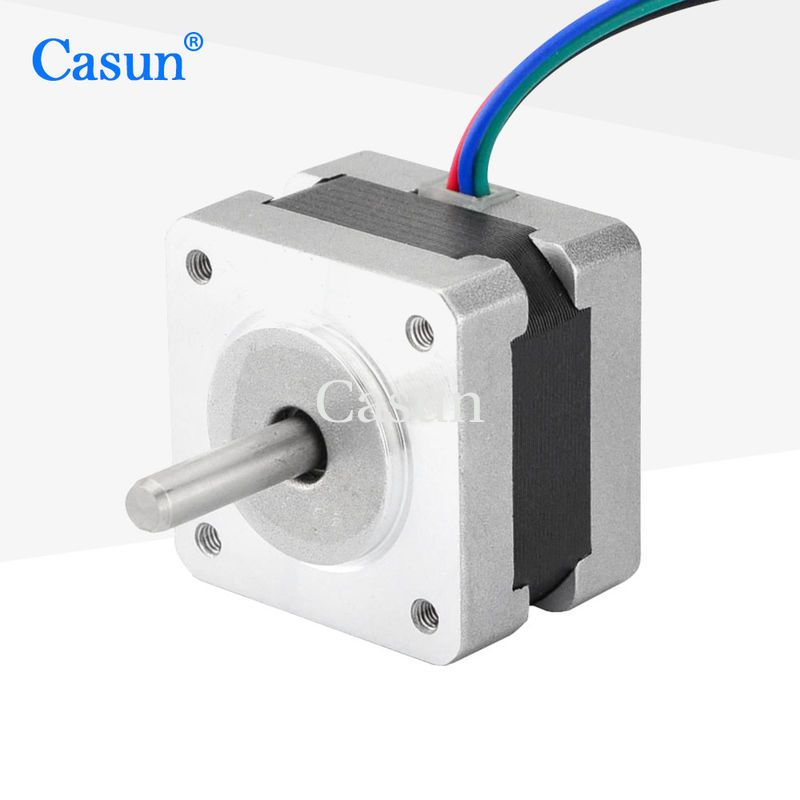

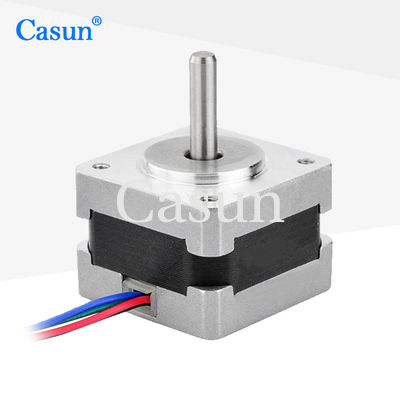

0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera

0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera

الاسم التجاري:	Casun
رقم الموديل:	35SHD4021-20
موك:	1 قطعة
سعر:	$4.14-$6.98
شروط الدفع:	د/أ، تي/تي، خطاب الاعتماد، د/ف
القدرة على العرض:	40000+قطعة+شهر

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

CE,ROHS,ISO

خطوة الملاك:

1.8 درجة

عقد عزم الدوران:

100mN.m

حاضِر:

0.7A

طول المحرك:

26 ملم

رمح:

رمح مستدير بطول 20 مم

حسب الطلب:

يمكن تصميم المحرك وتصنيعه حسب الطلب.

تفاصيل التغليف:

الكرتون: 36 × 29 × 14 سم

إبراز:

100mNm 2 Phase Unipolar Stepper Motor,0.4A 2 Phase Unipolar Stepper Motor,Surveillance Camera Unipolar Stepper Motor

0.4A 2 Phase Unipolar Stepper Motor

Surveillance Camera Unipolar Stepper Motor

وصف المنتج

Despite its relatively small size, the 35mm stepper motor can still provide a relatively high power output.

Water pumps, electronic door locks, image scanners, and fine positioning devices are examples of small automation systems

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
Every stepper motor model has use in a variety of situations
Ten-year warranty and purchase with confidence

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.7 A
Holding Torque	100 mN.m
Resistance	6.5 ohm
Inductance	6.0 mH
Rotor Inertia	12 g-cm²
Motor weight	0.15 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
