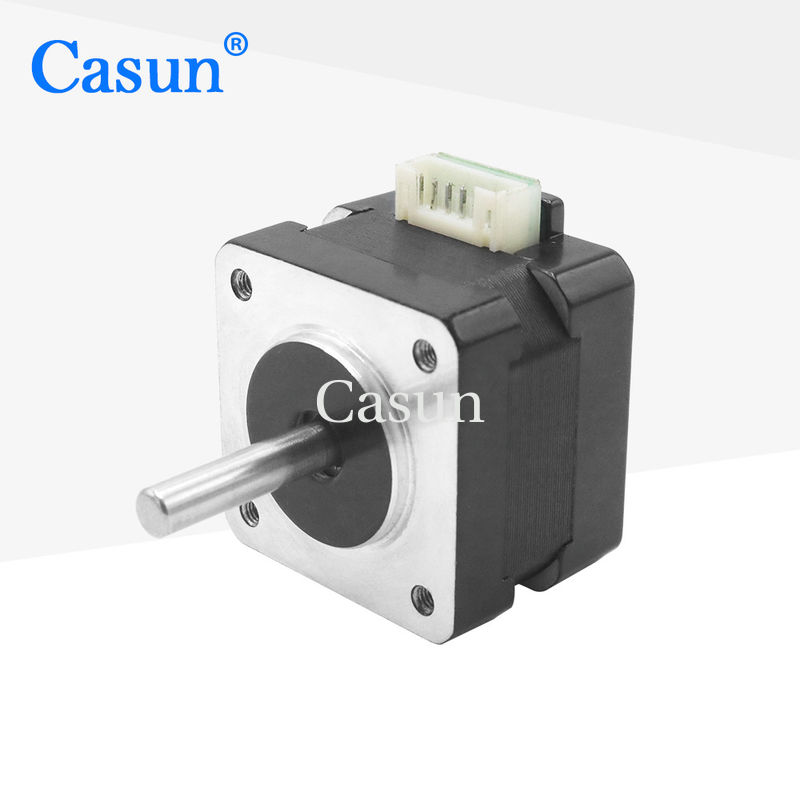

35x35x26mm 2 Phase Hybrid Stepper Motor 12V For Surveillance Camera

35x35x26mm 2 Phase Hybrid Stepper Motor 12V For Surveillance Camera

الاسم التجاري:	Casun
رقم الموديل:	35SHD0003-23H
موك:	1 قطعة
سعر:	$4.14-$6.98
شروط الدفع:	د/أ، تي/تي، خطاب الاعتماد، د/ف
القدرة على العرض:	40000+قطعة+شهر

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

CE,ROHS,ISO

خطوة الملاك:

1.8 درجة

عقد عزم الدوران:

110mN.m

حاضِر:

0.4A

طول المحرك:

26 ملم

رمح:

رمح مستدير بطول 23 مللي متر

حسب الطلب:

يمكن تصميم المحرك وتصنيعه حسب الطلب.

تفاصيل التغليف:

الكرتون: 36 × 29 × 14 سم

إبراز:

26mm 2 Phase Hybrid Stepper Motor,35x35 Hybrid Stepper Motor,Casun Hybrid Stepper Motor 12V

35x35 Hybrid Stepper Motor

Casun Hybrid Stepper Motor 12V

وصف المنتج

NEMA 14 stepper motors typically have higher resolution and accuracy, enabling more precise position control.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
We accept contract manufacturing and provide bespoke services
Offered in single- and double-shaft configurations
CE and RoHS approved
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	110 mN.m
Resistance	30 ohm
Inductance	24 mH
Rotor Inertia	12 g-cm²
Motor weight	0.15 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
