| الاسم التجاري: | Casun |
| رقم الموديل: | 28SHD4501-20B |
| موك: | 1 قطعة |
| سعر: | $5.94-$8.6 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |
The 28mm hybrid stepper motors typically have smaller dimensions and lower weight, making them suitable for compact spaces and lightweight equipment.
With high accuracy and resolution, precise position control can be achieved.
Features:
Step Angel |
1.8 ° |
Fram Size |
28 mm |
Number of Phase |
2 Phase |
Rated Current |
0.67 A |
Holding Torque |
120 mN.m |
Resistance |
9.2 ohm |
Inductance |
7.2 mH |
Rotor Inertia |
18 g-cm² |
Motor weight |
0.2 kg |
Number of leads |
4 |
Connection |
Bipolar |

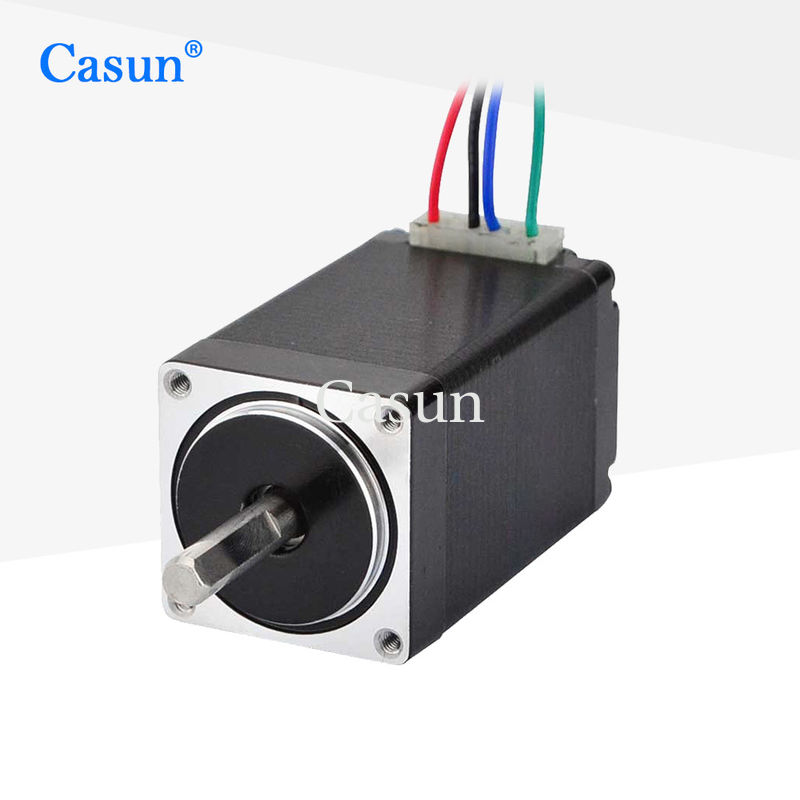

Appearance
