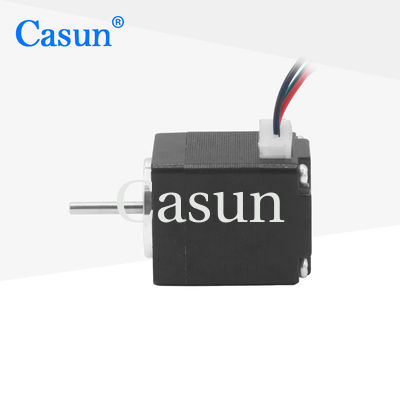

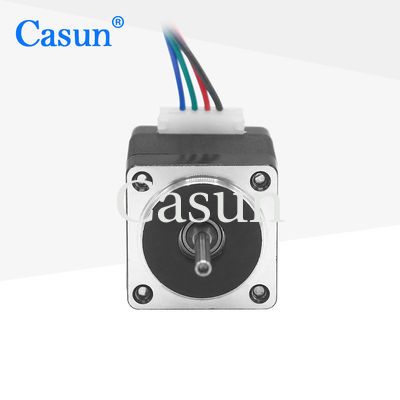

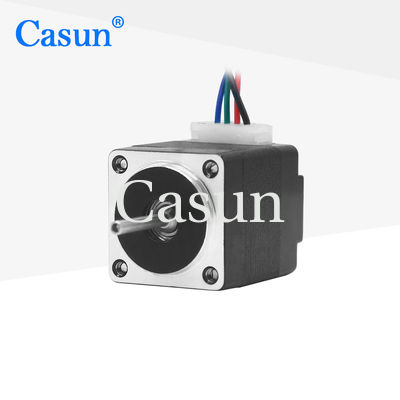

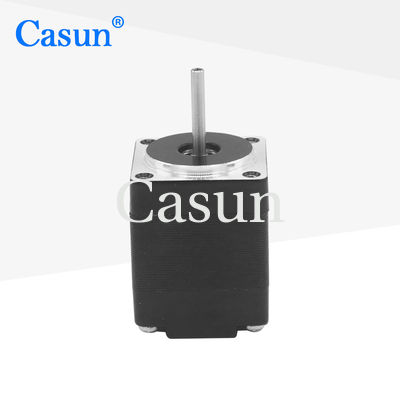

10mNm 4 Wire Bipolar Stepper Motor 5V 0.24A Nema 8 Motor 20x20x25mm

10mNm 4 Wire Bipolar Stepper Motor 5V 0.24A Nema 8 Motor 20x20x25mm

الاسم التجاري:	Casun
رقم الموديل:	B20SHD4701-14P
موك:	1 قطعة
سعر:	$5.94-$8.6
شروط الدفع:	د/أ، تي/تي، خطاب الاعتماد، د/ف
القدرة على العرض:	40000+قطعة+شهر

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

CE,ROSH,ISO

خطوة الملاك:

1.8 درجة

عقد عزم الدوران:

10mN.m

حاضِر:

0.24 أ

طول المحرك:

24.8mm

رمح:

عمود دائري بطول 14 ملم

حسب الطلب:

يمكن تصميم المحرك وتصنيعه حسب الطلب.

تفاصيل التغليف:

الكرتون: 36 × 29 × 14 سم

إبراز:

10mNm 4 Wire Bipolar Stepper Motor,4 Wire Bipolar Stepper Motor 5V,5V 0.24A Nema 8 Motor

4 Wire Bipolar Stepper Motor 5V

5V 0.24A Nema 8 Motor

وصف المنتج

Nema 8 Bipolar 1.8deg 10mN.m (1.42oz.in) Stepper Motor 0.24A 5.04V 20x20x25mm 4 Wires

Motor Specifications

Step Angel	1.8 °
Fram Size	20 mm
Number of Phase	2 Phase
Rated Current	0.24 A
Holding Torque	10 mN.m
Resistance	21 ohm
Inductance	5 mH
Rotor Inertia	2 g-cm²
Motor weight	0.08 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
