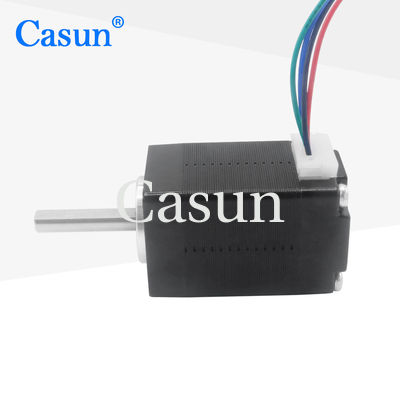

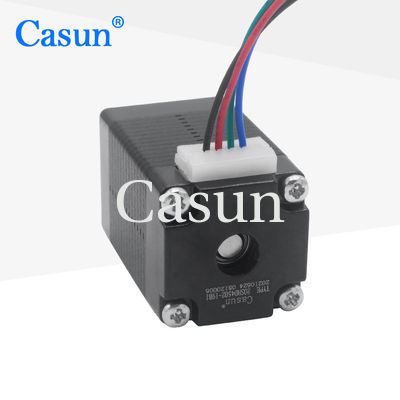

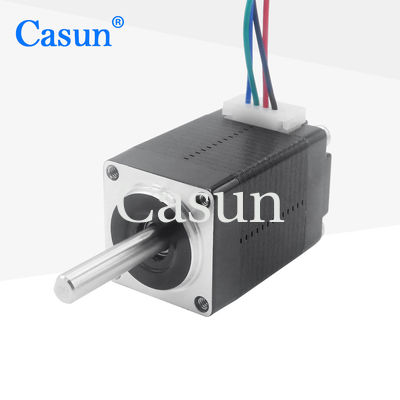

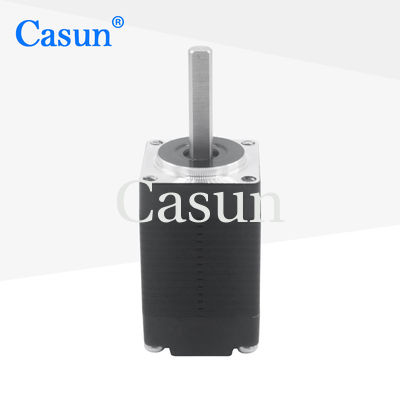

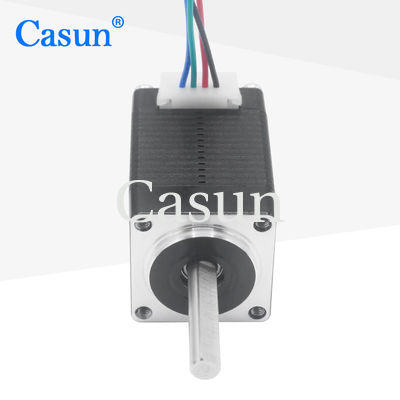

21mNM Bipolar NEMA 8 Stepper Motor 2 Phase 1.8 Deg Stepper Motor 4 Wires

21mNM Bipolar NEMA 8 Stepper Motor 2 Phase 1.8 Deg Stepper Motor 4 Wires

الاسم التجاري:	Casun
رقم الموديل:	20SHD4502-19B1
موك:	1 قطعة
سعر:	$5.94-$8.6
شروط الدفع:	د/أ، تي/تي، خطاب الاعتماد، د/ف
القدرة على العرض:	40000+قطعة+شهر

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

CE,ROSH,ISO

خطوة الملاك:

1.8 درجة

عقد عزم الدوران:

21mN.m

حاضِر:

0.8 أ

طول المحرك:

33 ملم

رمح:

طحن رمح مسطح بطول 19 مم

حسب الطلب:

يمكن تصميم المحرك وتصنيعه حسب الطلب.

تفاصيل التغليف:

الكرتون: 36 × 29 × 14 سم

إبراز:

Bipolar NEMA 8 Stepper Motor,21mNM NEMA 8 Stepper Motor,NEMA 8 1.8 Deg Stepper Motor

21mNM NEMA 8 Stepper Motor

NEMA 8 1.8 Deg Stepper Motor

وصف المنتج

The 20mm base stepper motor has a simple structure, therefore it has high reliability and stability.

Medical and scientific equipment, Wearable technology, machine vision and 3D printers.

Features:

High accuracy and torque
Offer custom services
Available in single or double shaft versions
Different situations may call for a particular stepper motor model
The best solution will be offered by our engineers in contact with you within 48 hours

Motor Specifications

Step Angel	1.8 °
Fram Size	20 mm
Number of Phase	2 Phase
Rated Current	0.8 A
Holding Torque	21 mN.m
Resistance	4.5 ohm
Inductance	1.6 mH
Rotor Inertia	2.5 g-cm²
Motor weight	0.07 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
