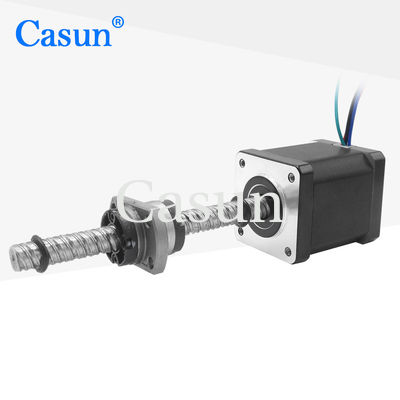

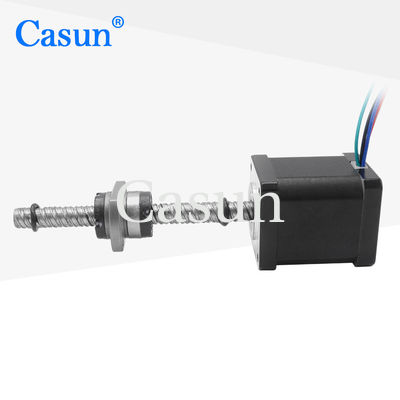

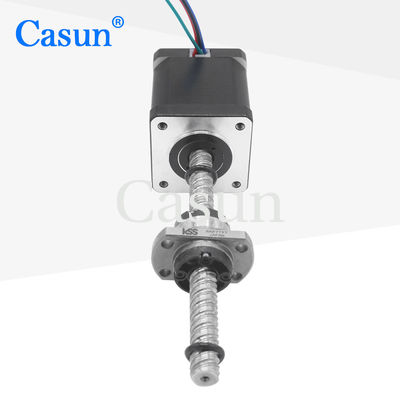

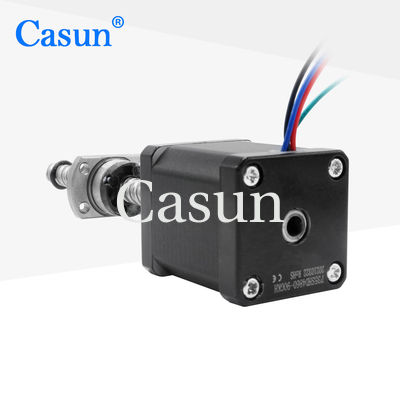

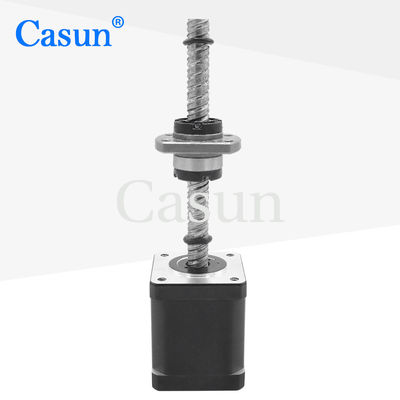

4.05V 1.5A 1.8 Degree 2 Phase NEMA 14 Linear Stepper Motor 35x35mm Ball Screw

4.05V 1.5A 1.8 Degree 2 Phase NEMA 14 Linear Stepper Motor 35x35mm Ball Screw

الاسم التجاري:	Casun
رقم الموديل:	P35SHD4860-90GKH
موك:	1 قطعة
سعر:	$4.14-$6.98
شروط الدفع:	د/أ، تي/تي، خطاب الاعتماد، د/ف
القدرة على العرض:	40000+قطعة+شهر

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

CE,ROHS,ISO

خطوة الملاك:

1.8 درجة

عقد عزم الدوران:

360 م.ن.م

حاضِر:

1.5A

طول المحرك:

46mm

رمح:

رمح الكرة اللولبية بطول 90 مم

حسب الطلب:

يمكن تصميم المحرك وتصنيعه حسب الطلب.

تفاصيل التغليف:

الكرتون: 36 × 29 × 14 سم

إبراز:

1.5A NEMA 14 Linear Stepper Motor,4.05V NEMA 14 Linear Stepper Motor

4.05V NEMA 14 Linear Stepper Motor

وصف المنتج

The ball guiding structure can provide smooth motion and lower friction loss, thereby improving the stability and reliability of the system.

It can achieve high speed and is suitable for applications that require fast linear motion.

Features:

Specializing in tailor-made services is our expertise
Hybrid stepper construction
Having operated in China for 12 years, we have served over 800 customers
CE and RoHS approved
Your purchase comes with a ten-year warranty, ensuring confidence

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	360 mN.m
Resistance	2.7 ohm
Inductance	3.2 mH
Rotor Inertia	35 g-cm²
Motor weight	0.35 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
