| الاسم التجاري: | Casun |
| رقم الموديل: | 57SHY4001-2A6 |
| موك: | 1 قطعة |
| سعر: | $9.68-13.46 |
| شروط الدفع: | د/أ، تي/تي، خطاب الاعتماد، د/ف |
| القدرة على العرض: | 40000+قطعة+شهر |

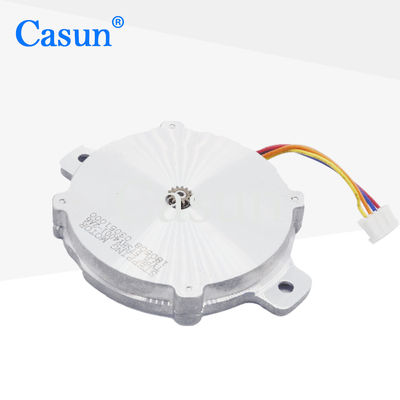

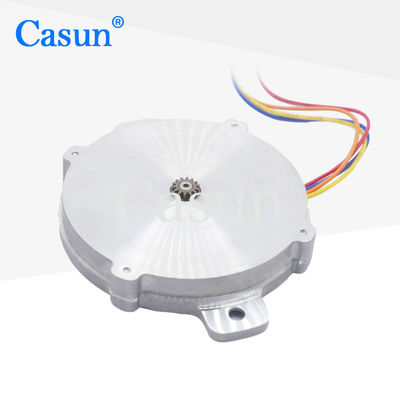

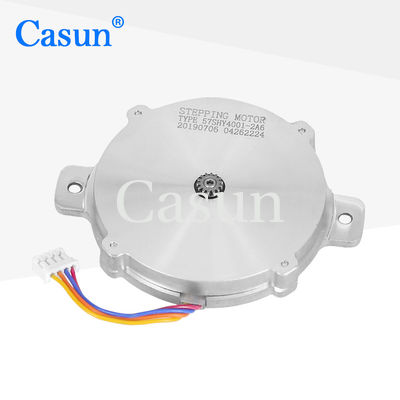

The Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.
Use with a microstepping driver to reduce vibration and achieve higher step resolution.
Choose a baseline version or request your own customized configuration.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
57 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
0.8A |
|
Holding Torque
|
60 mN.m |
|
Resistance
|
3.5 om |
|
Inductance
|
1.8 mH |
|
Rotor Inertia
|
2 g-cm² |
|
Motor weight
|
0.03 kg |
|
Number of leads
|
4 |
|
Connection
|
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Motor Length | Current | Holding Torque | |
| 57SHY4001 | 9.6mm | 0.8A | 60mN.m | |
| 57SHY4301 | 13mm | 1.2A | 125mN.m | |
